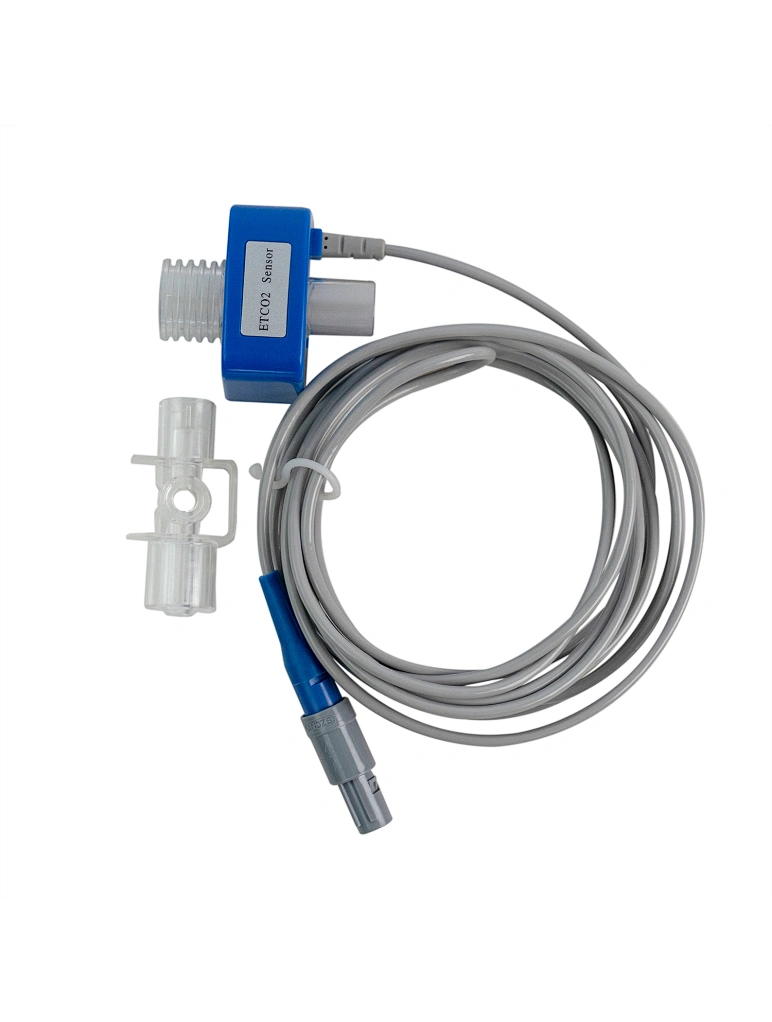

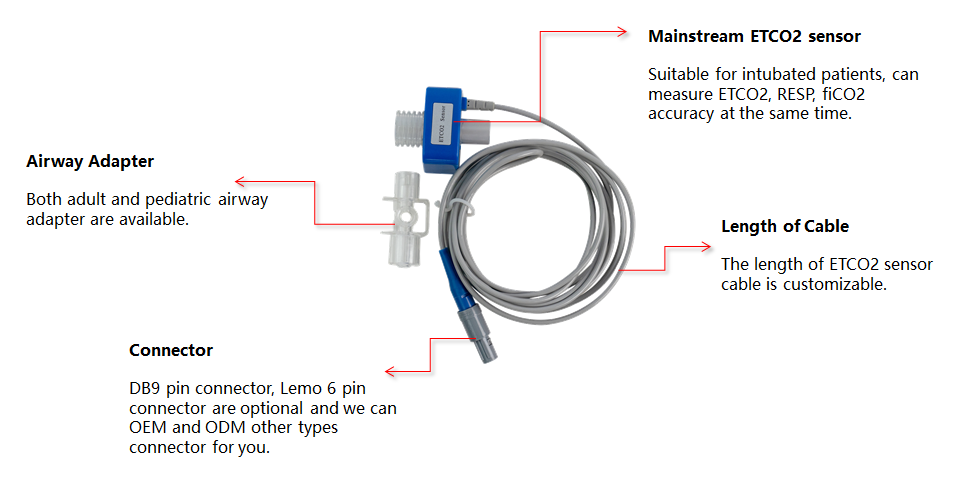

Mainstream ETCO2 Sensor

Mainstream ETCO2 Sensor

Model NO. CAPM-M

Quantity

Contact Now add to cart



Overview

Mainstream CO2 sensors offer non-invasive measurement of ETCO2 with a rapid response CO2 sensor. It uses an infrared sensor to measure carbon dioxide directly at the end of the endotracheal tube.


Features



• Patameters: ETCO2, FICO2 and RESP
• Suitale for intubated patients during surgical process
• Assisting the doctor in judging when to connect and remove the ventilator
• Cheking and confirm ET tube placement
• Alaming when accidental extubating occurs
• Detecting ventilator airway connection
• Compatible with Respironics module's communication protocol
• OEM and ODM service are available



Technical Specification



• Transducer Type:                Mainstream CO2 sensor
• Principle of Operation:         Non-dispersive infrared (NDIR)
• Initialization Time:              Capnogram displayed in less than 20 seconds

                                                 Reaching full specifications within 2 minutes

• CO2 Measure Range:         0–150 mmHg/0–19.7 %/0–20 kPa
• CO2 Accuracy :                 0-40mmHg        ±2 mmHg

                                                41- 70 mmHg     ±5% of reading
                                                71 – 100mmHg   ±8% of reading
                                                101-150mmHg   ±10% of reading


Application


   Mainsteam ETCO2 sensor is for ideal for intubated patients:

       • Airway confirmation and management
       • Ventilator management
       • Resuscitation
       • Transport









   Mainsteam ETCO2 sensor is for ideal for intubated patients:

       • Airway confirmation and management
       • Ventilator management
       • Resuscitation
       • Transport
