handheld ETCO2 Capnograph

Overview

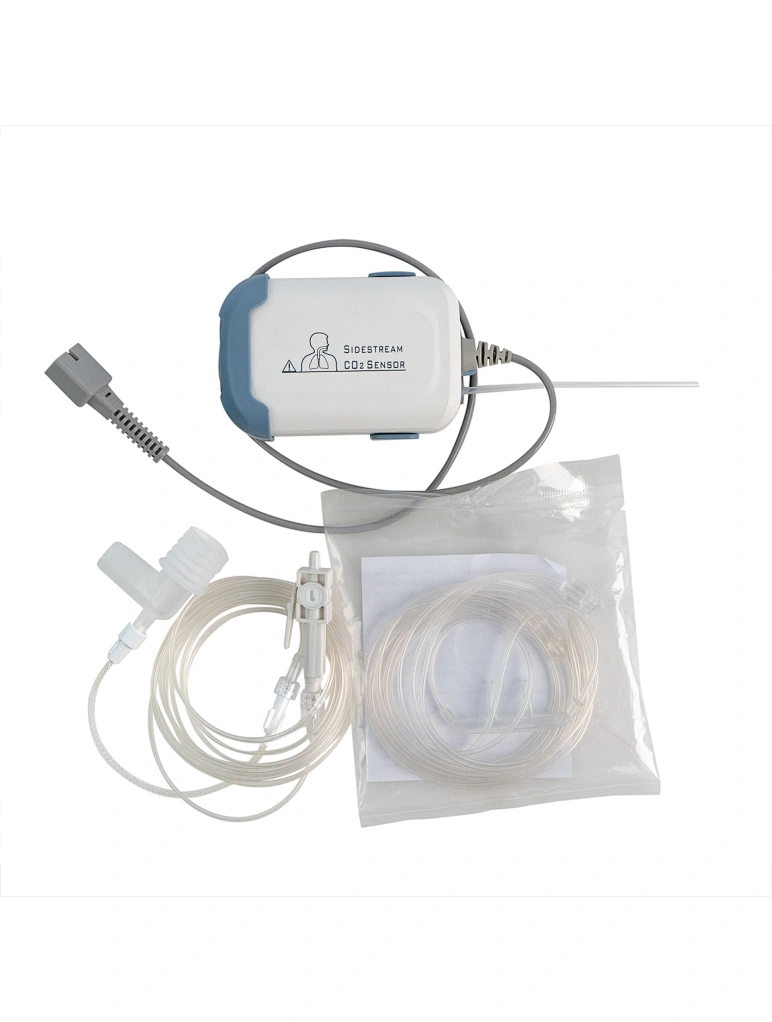

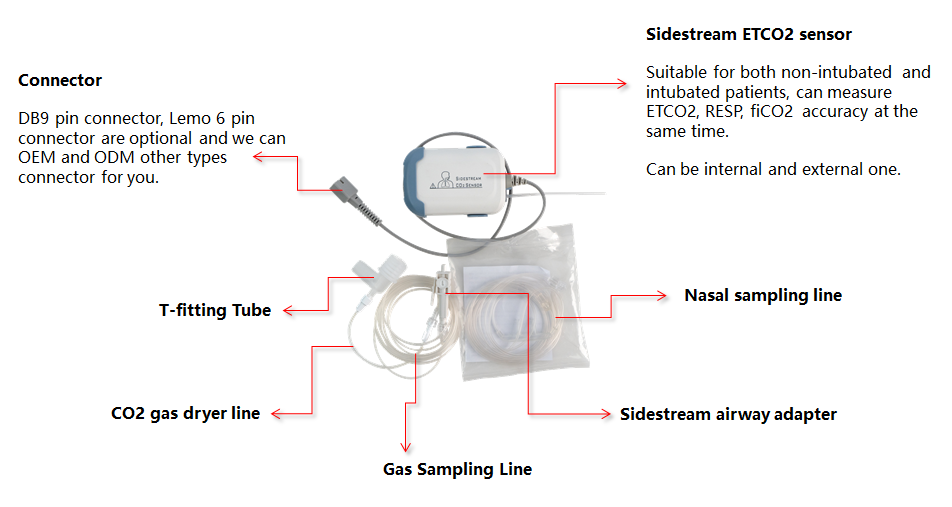

Sidestream CO2 sensors is an external plug and play sidestream CO2 sensor. It does not occupy any host space and connects to host just with one eight-pin plug. LH800 features cutting-edge technology for measurement of instantaneous CO2 concentration, respiration rate, end-tidal CO2 concentration, inspired CO2 concentration, inspiration time and expiration time. It is generally used in patient monitor and anesthetic machine. With a sampling rate low to 50 mL/min, it is ideal for use on adult, pediatric and infant patients; patients undergoing procedural sedation; and short- term monitoring of intubated patients.

Features

  • Patameters: ETCO2, FICO2 and RESP
  • Suitale for intubated patients during surgical process
  • Assisting the doctor in judging when to connect and remove the ventilator
  • Cheking and confirm ET tube placement
  • Alaming when accidental extubating occurs
  • Detecting ventilator airway connection
  • Compatible with Respironics module's communication protocol
  • OEM and ODM service are available
handheld ETCO2 Capnograph

Technical Specification

  • Transducer Type :                 Sidestream CO2 sensor
  • Sample Rate :                       50 mL/min, ±10mL/min.
  • Principle of Operation：         Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts
  • Initialization Time：             Capnogram displayed in less than 5 seconds; Reaching full specifications within 10 minutes.
  • CO2 Measure Range:
                                                       0 - 114 mmHg
                                                       0 - 15%
                                                       0 - 15.2kPa
  • CO2 Resolution:
                                                     0.1 mm Hg      0 to 50 mm Hg
                                                     0.25 mm Hg     50 to 114 mm Hg
  • CO2 Accuracy:
                                                     0 – 40 mmHg    ±2 mmHg
                                                     40 – 114 mmHg  ±5% of reading
  • Respiratory Rate :
                            Range:              2 to 120 Breaths Per Minute (BPM)

                         Accuracy:             ±1 breath
  • Calibration:                        No routine user calibration required
  • Compensation:
                                              Automatic Barometer Pressure 400 - 800 mmHg.
                                             User selectable O2 / N2O compensation.

Application

  Sidesteam ETCO2 sensor is  primarily for non-intubated patients and appropriate for intubated patients for short-term monitoring:
      • Airway confirmation and management
      • Resuscitation
      • Transport
      • Procedural sedation
      • Pain management
