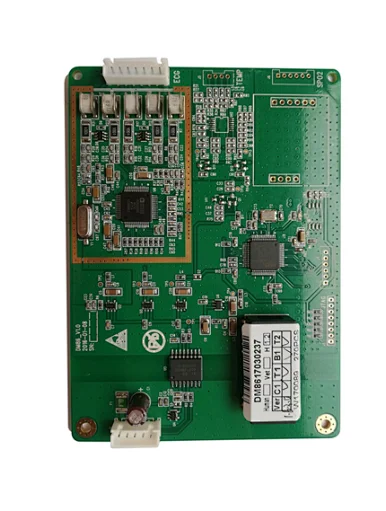

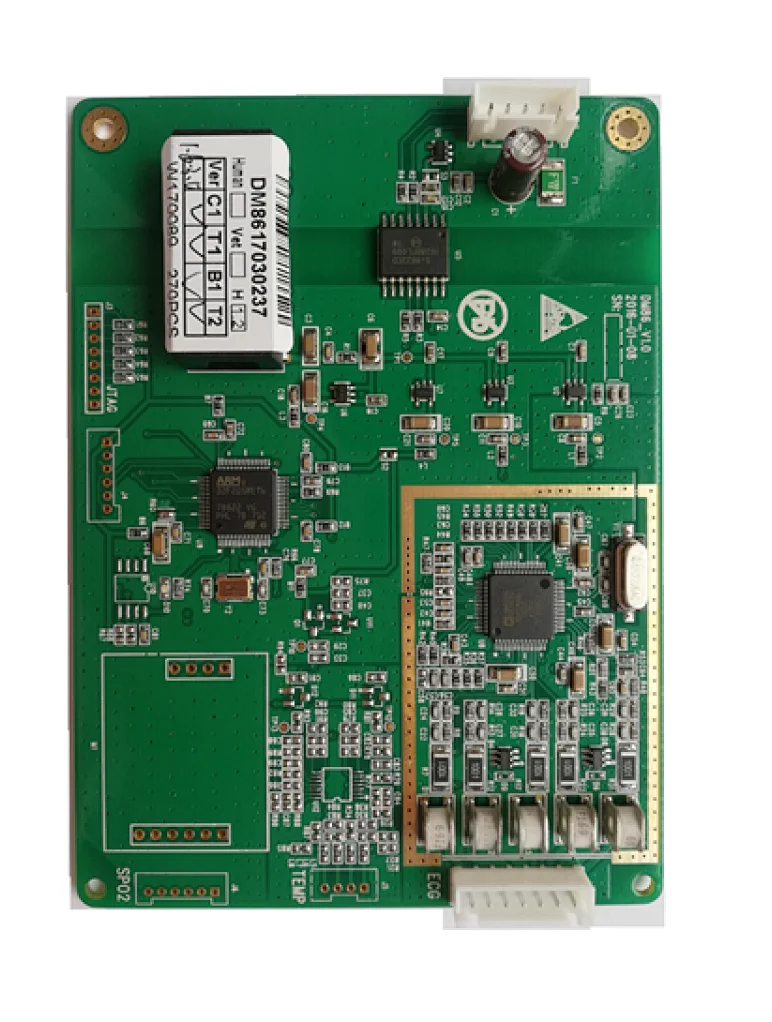

DM86 ECG Module

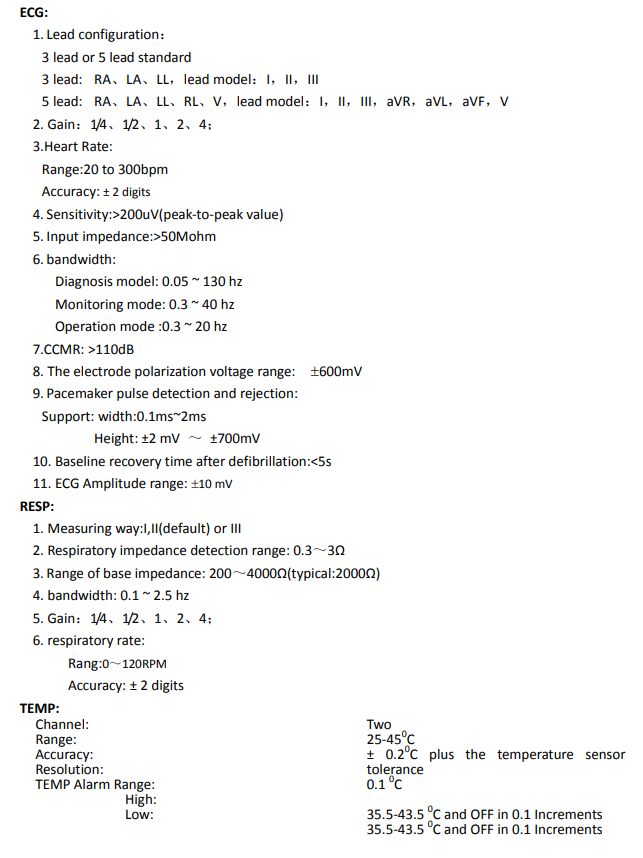

Specifications：

ECG:

• Lead configuration： 3 lead or 5 lead standard
• 3 lead: RA、LA、LL，lead model：I，II，III
• 5 lead: RA、LA、LL、RL、V，lead model：I，II，III，aVR，aVL，aVF，V
• Gain：1/4、1/2、1、2、4；
• Heart Rate:
• Range:20 to 300bpm
• Accuracy: ± 2 digits
• Sensitivity:>200uV(peak-to-peak value)
• Input impedance:>50Mohm
• bandwidth:
• Diagnosis model: 0.05 ~ 130 hz
• Monitoring mode: 0.3 ~ 40 hz
• Operation mode :0.3 ~ 20 hz
• CCMR: >110dB
• The electrode polarization voltage range: ±600mV
• Pacemaker pulse detection and rejection:
• Support:
• width:0.1ms~2ms
• Height: ±2 mV ～ ±700mV
• Baseline recovery time after defibrillation:<5s
• ECG Amplitude range: ±10 mV

RESP:

• Measuring way:I,II(default) or III
• Respiratory impedance detection range: 0.3～3Ω
• Range of base impedance: 200～4000Ω(typical:2000Ω)
• bandwidth: 0.1 ~ 2.5 hz
• Gain：1/4、1/2、1、2、4；
• respiratory rate: Rang:0～120RPM Accuracy: ± 2 digits

TEMP:

• Channel: Two
• Range: 25-450C
• Accuracy: 0.20C plus the temperature sensor tolerance
• Resolution: 0.1 0C
• TEMP Alarm Range:
• High: 35.5-43.5 0C and OFF in 0.1 Increment
• Low: 35.5-43.5 0C and OFF in 0.1 Increments Resolution: 0.1 0C

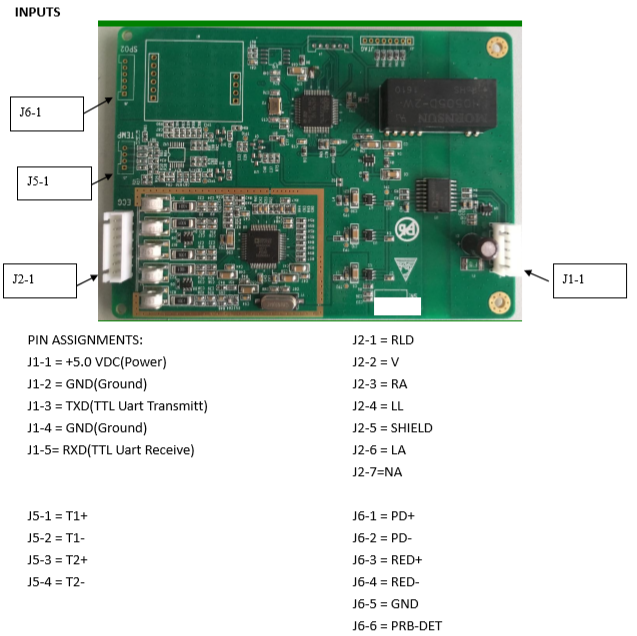

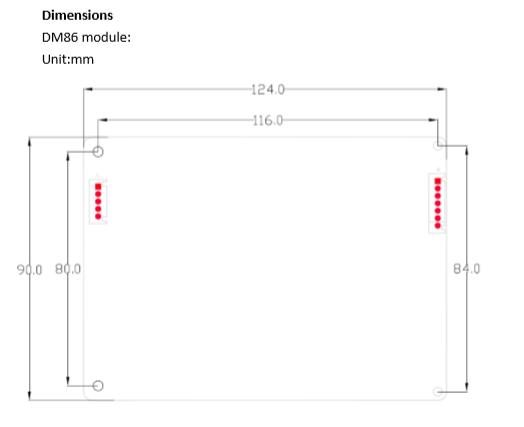

Details:

Indications for Use

The DM86 module is intended to provide medical device manufacturers with a small device that can be easily integrated into a host device. The module measures ECG and impedance respiratory. When integrated with a medical device manufacturer’s host system, the DM86 module can be used to measure HR(heart rate),RR(respiratory rate) and ECG;
