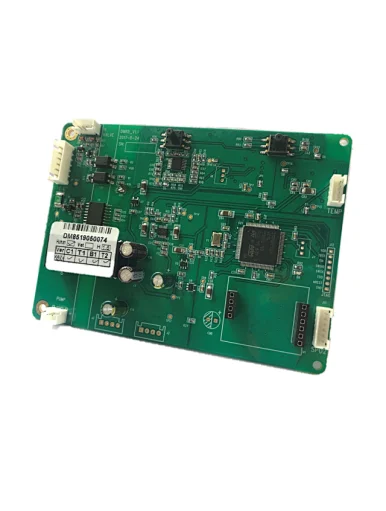

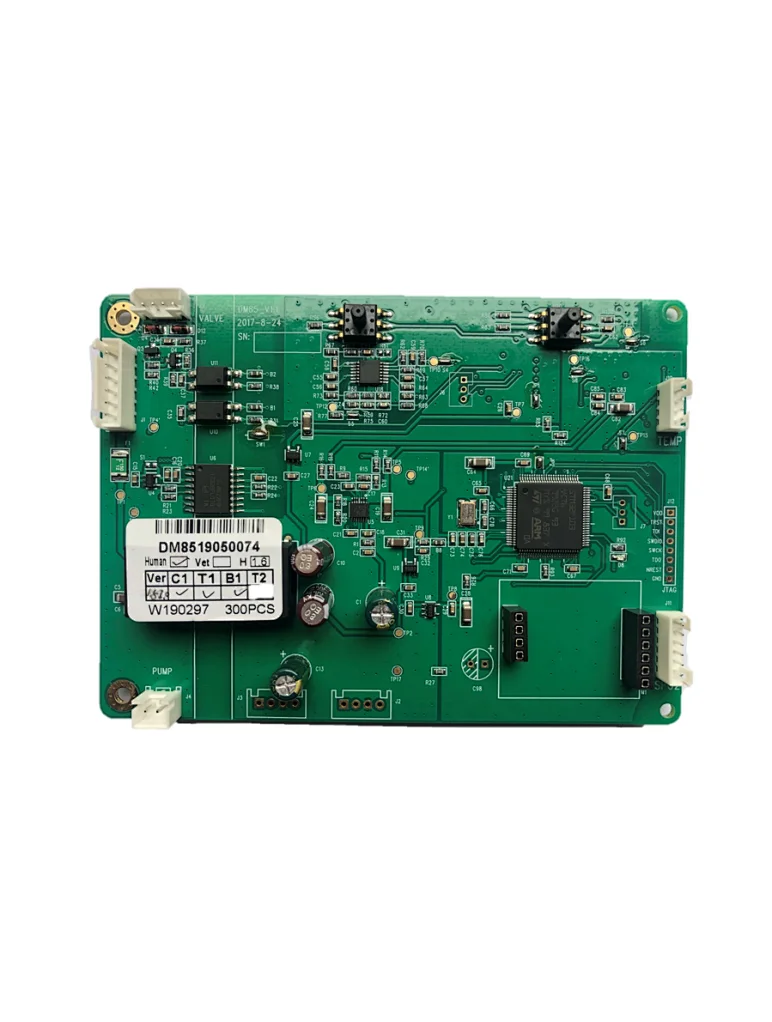

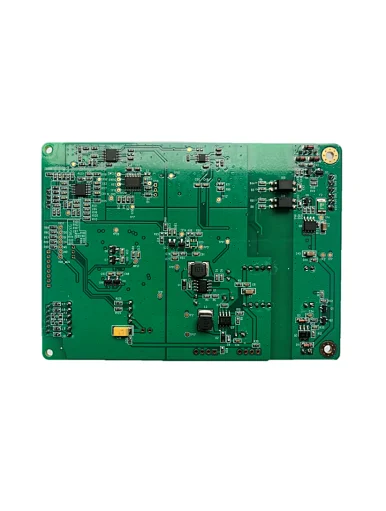

DM85 NIBP Module
DM85 NIBP Module
DM85 NIBP Module
DM85 NIBP Module
DM85 NIBP Module
DM85 NIBP Module
DM85 NIBP Module

DM85 NIBP Module

Model NO.
DM85
Quantity:

DM85 Module Specifications:

NIBP:

  • Range: Systolic: deflation 0-300 mmHg
  • Mean Arterial: 0-300 mmHg
  • Diastolic: 0-300 mmHg
  • Pulse: 30-250 bpm
  • Accuracy: Algorithm based on human algorithm that meets or exceeds accuracy
  • requirements of ANSI / AAMI SP10:1992 and 2002 standards for
  • Measurement Time: 30-50 seconds typical, 180 seconds maximum
  • Default Inflation Pressure: 165 mmHg - Adult,145 mmHg – Pediatric,100mmHg-Neonate
  • Calibration: Factory calibrated
  • AUTO Interval Times: 2, 3, 5, 10, or 30 minutes, or 1, 2 hours
  • Alarm Range: 0-300 (in 1 mmHg steps), and OFF
  • Pulse Rate Accuracy: 30-250 bpm, ± 2% or ± 3 bpm (whichever is greater)

TEMP:

  • Channel:Two
  • Range:0-50 0 C
  • Accuracy:± 0.2 0 C plus the temperature sensor
  • Resolution: tolerance 0.10 C
