Model No: PM5000

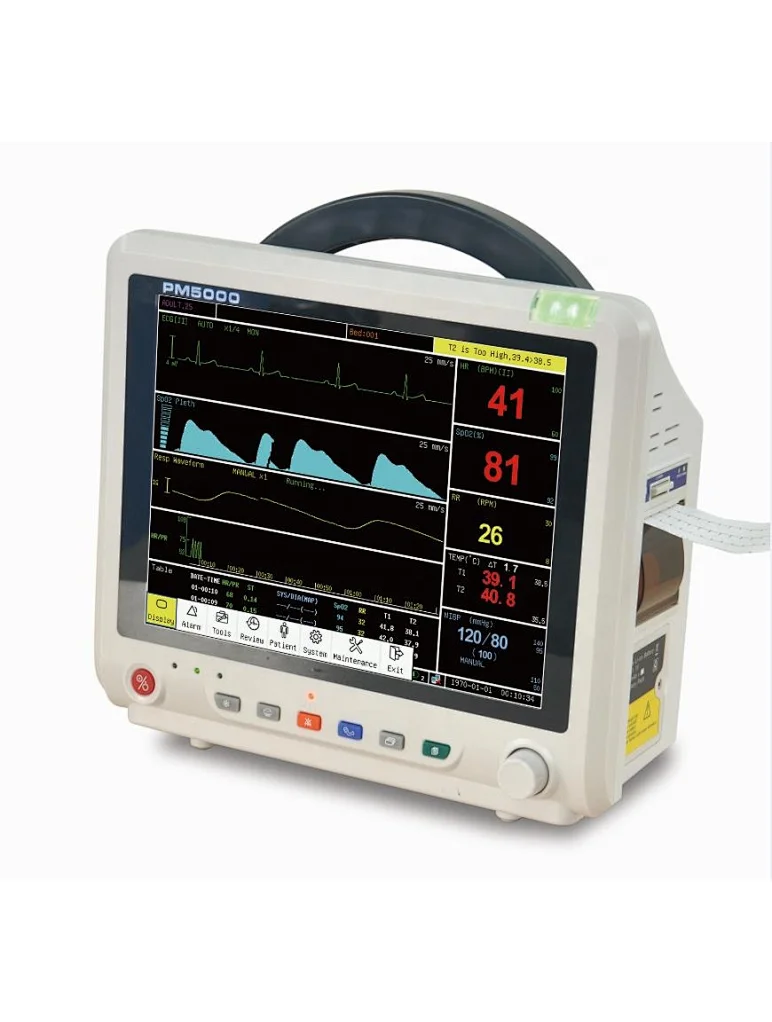

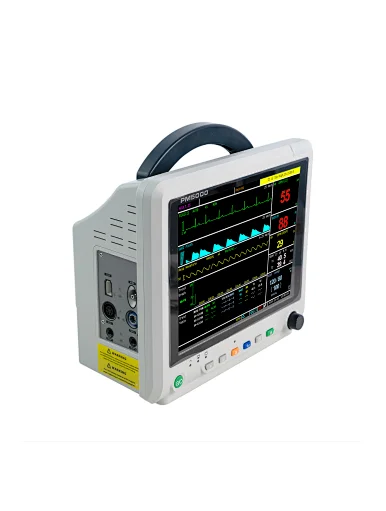

PM5000 12.1-INCH PATIENT MONITOR

The PM5000 patient monitor is the leading choice in multi-parameter monitoring.

With its large, easy to read display and intuitive design.

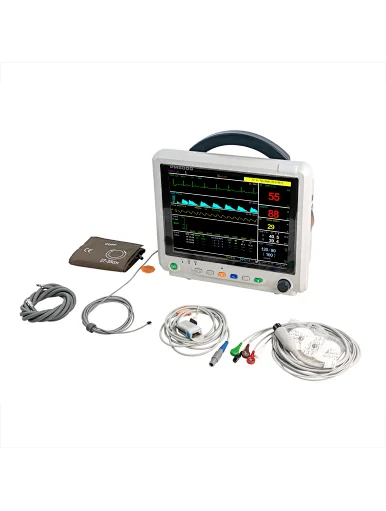

The standard parameters includes 5/3 leads electrocardiography(ECG), non-invasive blood pressure(NIBP), pulse oximetry (SpO2),Respiration Rate(RR), temperature(TEMP).
Optional parameters includes ETCO2, 2 invasive blood pressure and an integrated printer.
2 years warranty.

minimum order :

1 unit

Supply Ability :

20000unit / Month

Stock Time :

3Day

Quantity :

Buy Now

add to cart

Contact Now

```html

Description

Bring an Easy Way to Monitoring

Patient monitoring should be more equitable and inclusive. Based on 16-year experience of UTECH patient monitoring, PM series patient monitors, precise target to primary clinical demands, ensure high quality, durability, and accuracy affordably.

Elevate operation experience and performance on the premise of cost control.

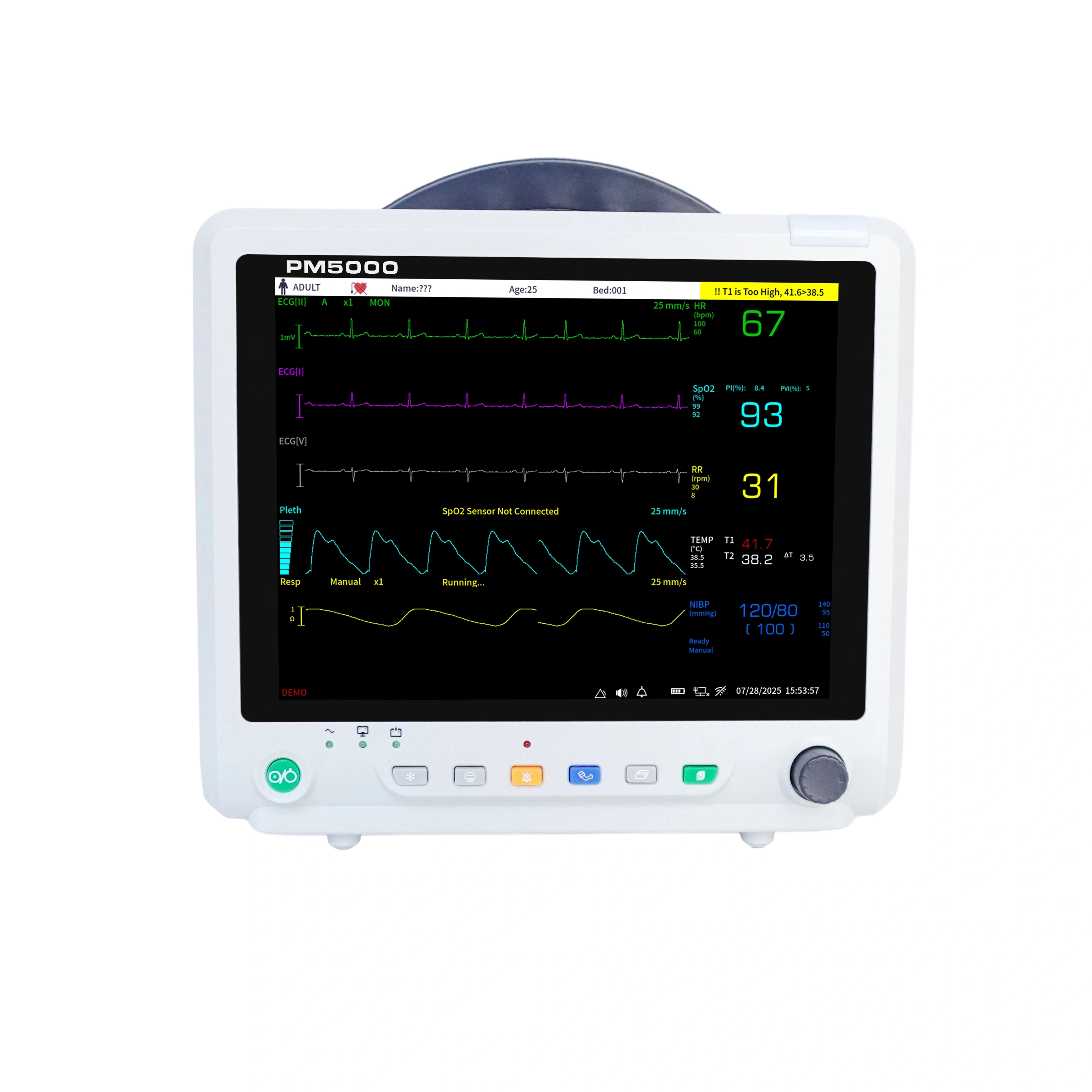

Dual-Battery Longevity

Its two-bay battery system is built for endurance, supporting extended shifts and mobile patient care.

This innovative solution allows for continuous use and easy battery swaps, eliminating downtime and ensuring the monitor remains active through clinical scenarios.

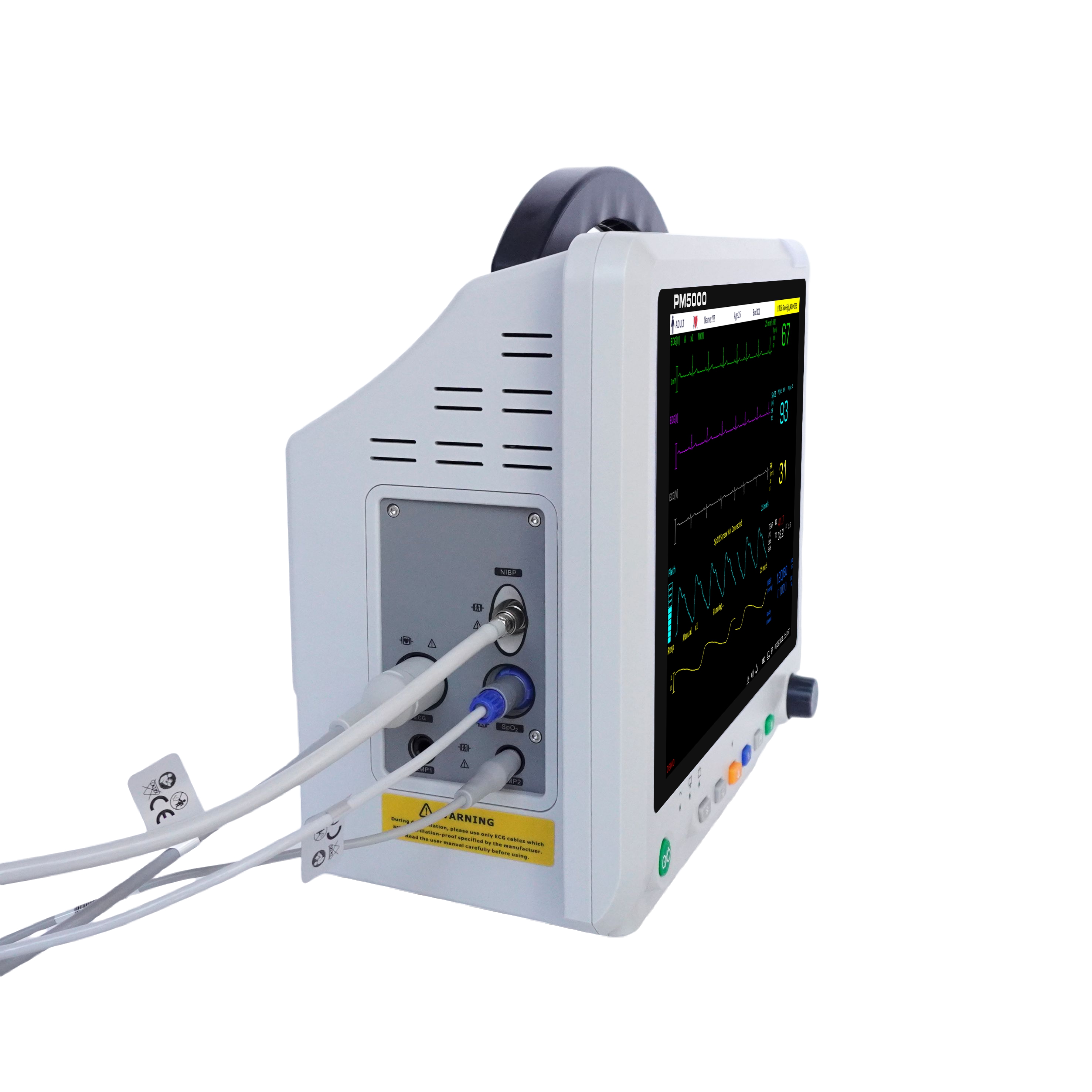

Cost-Effective

Designed for reliability and ease of use, it ensures accurate patient data is always accessible.

This makes it the ideal choice for budget-conscious departments, clinics, and high-volume areas seeking to maximize their resources.

By offering core advanced features at an accessible price, we provide a smart investment that enhances patient safety and operational efficiency.

Central Monitoring PM5000 PATIENT MONITOR

Central Monitoring Compatible

The PM5000 is equipped with advanced connectivity options, allowing it to be seamlessly integrated into a Central Monitoring System.

This enables the real-time wireless transmission of patient data, facilitating streamlined data management.

Features of Patient Monitor

12.1"large-sized screen, anti-dazzle with 4°incline.
Integrated module designs ensure the product's safety, stability and durability.
Wide-angle alarms indicator makes patients safer.
Multiple display modes: OxyCRG, Trend table and Trend graph etc.
Advanced patient information management system.
Review trend data at any time for any patient by inputting patient ID or name.
Connect with central monitoring system for remote and wireless monitor.
High capacity storage, power-off data protection.
3-level visual/audio alarms and alarm events can be stored and reviewed.
Support slot interfaces: Network, Wi-Fi.

Specifications

Display

LCD, 12.1 inch diagonal high-resolution TFT (Thin Film Transistor) Active Matrix LCD
Resolution, Resolution

SpO2

Range, (0 to 100) % Functional Saturation
Accuracy, ± 2 bpm or ± 2% of reading (whichever is greater)
Resolution, 1 %
Pulse Rate Range, 20 bpm to 350 bpm
Pulse Rate Accuracy, ± 2 bpm or ± 2% of reading (whichever is greater)
Resolution, 1 bpm

ECG

Lead Set, 3-lead: I, II, III 5-lead: I, II, III, V, aVR, aVL, aVF 12-lead: I, II, III, V1, V2, V3, V4, V5, V6, aVR, aVL, aVF
HR range, 20-350 bpm
Heart Rate Accuracy, ±2 bpm or ±2 % of reading, (whichever is greater)
Resolution, 1 bpm
Display Gain Settings, X 1/4, X1/2, X1, X2, X4, auto
Sweep Speed, 6.25 mm/s; 12.5 mm/s; 25mm/s; 50 mm/s

NIBP

Method of Measurement, Oscillometric with step-down deflation
Range, Systolic: (40 to 270) mmHg; Mean Arterial: (30 to 220) mmHg; Diastolic: (20 to 200) mmHg
Units of Measure, mmHg, kPa(user-select able)
Resolution, 1 mmHg
Measurement Time, 30 s to 50 s typical, 120 s maximum
Default Inflation Pressure, 165 mmHg - Adult 145 mmHg - Pediatric 90 mmHg - Neonate
Cuff pressure rating, (0 to 300) mmHg
Over pressure protection, Adult: 297±3 mmHg Pediatric: 297±3 mmHg Neonate: 147±3 mmHg

TEMP

Standards, (ISO 80601-2-56)
Method, Thermal resistance
Channel, Two channel
Range, 0℃ to 50℃ / 32℉ to 122 ℉
Accuracy, ± 0.2 ℃ plus the temperature sensor tolerance
Resolution, 0.1 ℃, 0.1℉
TEMP Alarm Range, High: 35.5 ℃ to 43.5 ℃ and OFF in 0.1 Increments; Low: 35.5 ℃ to 43.5 ℃ and OFF in 0.1 Increments

CO2 (Optional)

Mode of Sampling, Main stream
Sample Flow Rate, Range: (50 to 150) ml/min Accuracy: ±20%; Default: 75 ml/min
Principle of Operation, Non-dispersive infrared, dual Wavelength, no moving parts
Initialization Time, Capnogram displayed in less than 4 seconds, At an ambient temperature of 25℃, full specifications within 5 minutes
CO2 Measurement Range, (0 to 114)mmHg, (0 to 15)% , (0 to 15.2 )kPa
CO2 Response Time, Includes transport time and rise time Less than 2 seconds, at 150ml/min sampling flow Less than 3 seconds, at 100ml/min sampling flow; Less than 4 seconds, at 50ml/min sampling flow
CO2 Resolution, 0.1 mmHg
CO2 Accuracy, (0 to 40) mmHg ±2 mmHg; (41 to 70) mmHg ±5% of reading; (71 to 114) mmHg ±10% of reading, Above 80 breaths per minute ±12 % of reading * Note: Gas temperature at 25 ℃
CO2 Stability, Short Term Drift: Drift over three hours shall not exceed 1 mmHg maximum. Long Term Drift: Accuracy specification will be maintained over a six hour period
Sampling Rate, 100 Hz
Respiration Rate Range, (4 to 150) breaths per minute
Respiration Rate Accuracy, ±1 rpm
Calibration, No routine user calibration required.

Respiration

Range，0 to 120rpm
Accuracy，±1 rpm
Resolution，1 rpm
RESP Alarm Rang，High: 0 rpm to 120 rpm , and OFF Low: 0 rpm to 120 rpm , and OFF
Lead，Lead Ⅱ

Environmental

Temperature，(0 to 50) ℃ (Operating) (-20 to +55) ℃ (Storage and Transport)
Humidity，15% to 95% (Operation) 10% to 95% (Storage and Transport)
Barometric Pressure，(70 to 106) kPa (Operation , Storage and Transport)

Power Requirement

AC Input，(100 to 240)V a.c., 50/60 Hz, 60VA, FUSE T1.5A
Rechargeable battery，11.1V, 4.4mAh

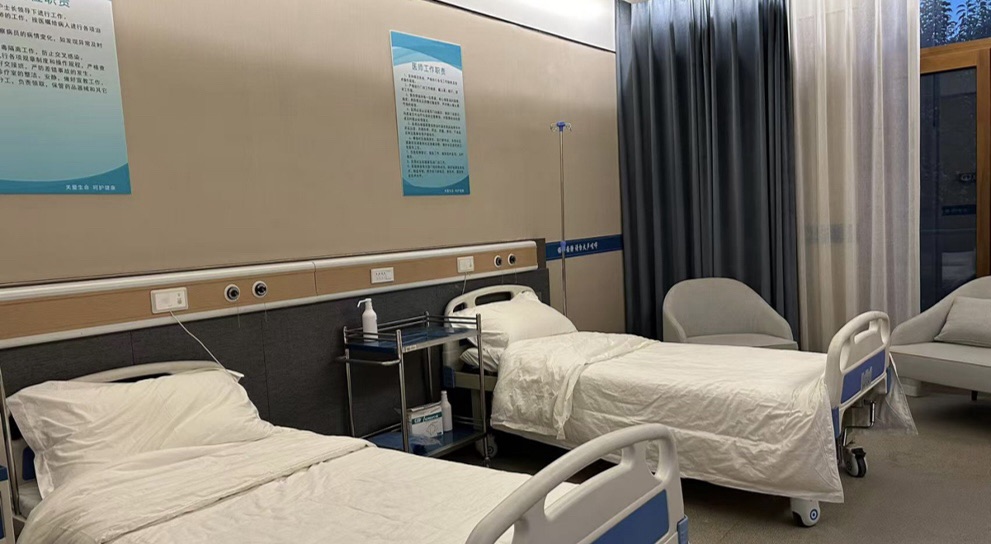

Clinical Applications
