Model No: UM2017
UM2017 17-INCH PATIENT MONITOR
The UM2017 Patient Monitor is a monitor that breaks the shape of the traditional monitor.
The unique inclined panel design makes the angle of the buttons and the screen more in line
with the angle of human observation, which is a kind of humanized design.
It may be used in the hospital, clinical environment, homecare. The rounded chamfer
design makes it full of a sense of science and technology.
2 years warranty
The unique inclined panel design makes the angle of the buttons and the screen more in line
with the angle of human observation, which is a kind of humanized design.
It may be used in the hospital, clinical environment, homecare. The rounded chamfer
design makes it full of a sense of science and technology.
2 years warranty
minimum order :
1 piece
Supply Ability :
2000piece / Month
Stock Time :
3Day
Quantity :
Description
Monitoring Within Reach
The UM series puts reliable monitoring technologies at your fingertips. With its accurate readings and optimized performance, the UM series can meet most basic monitoring needs, bringing easy access to high-quality healthcare for everyone.

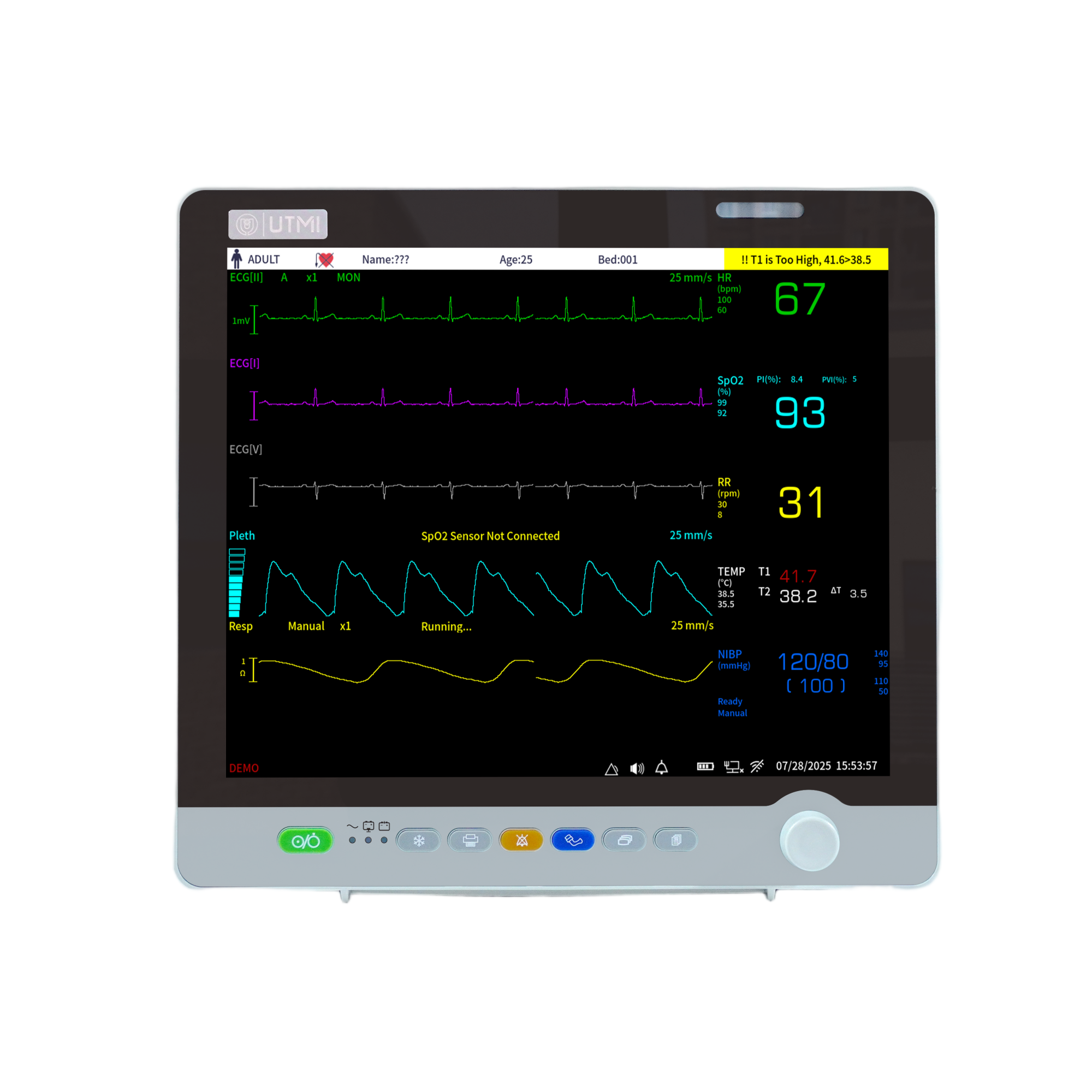

Easy to Observe
The 17-inch screen with 1280x1024 resolution offers outstanding clarity. The large, high-definition display presents patient vital signs with exceptional sharpness, enabling medical staff to quickly identify critical trends and subtle anomalies in waveforms and data. This not only accelerates analysis and decision-making but also significantly boosts monitoring efficiency.

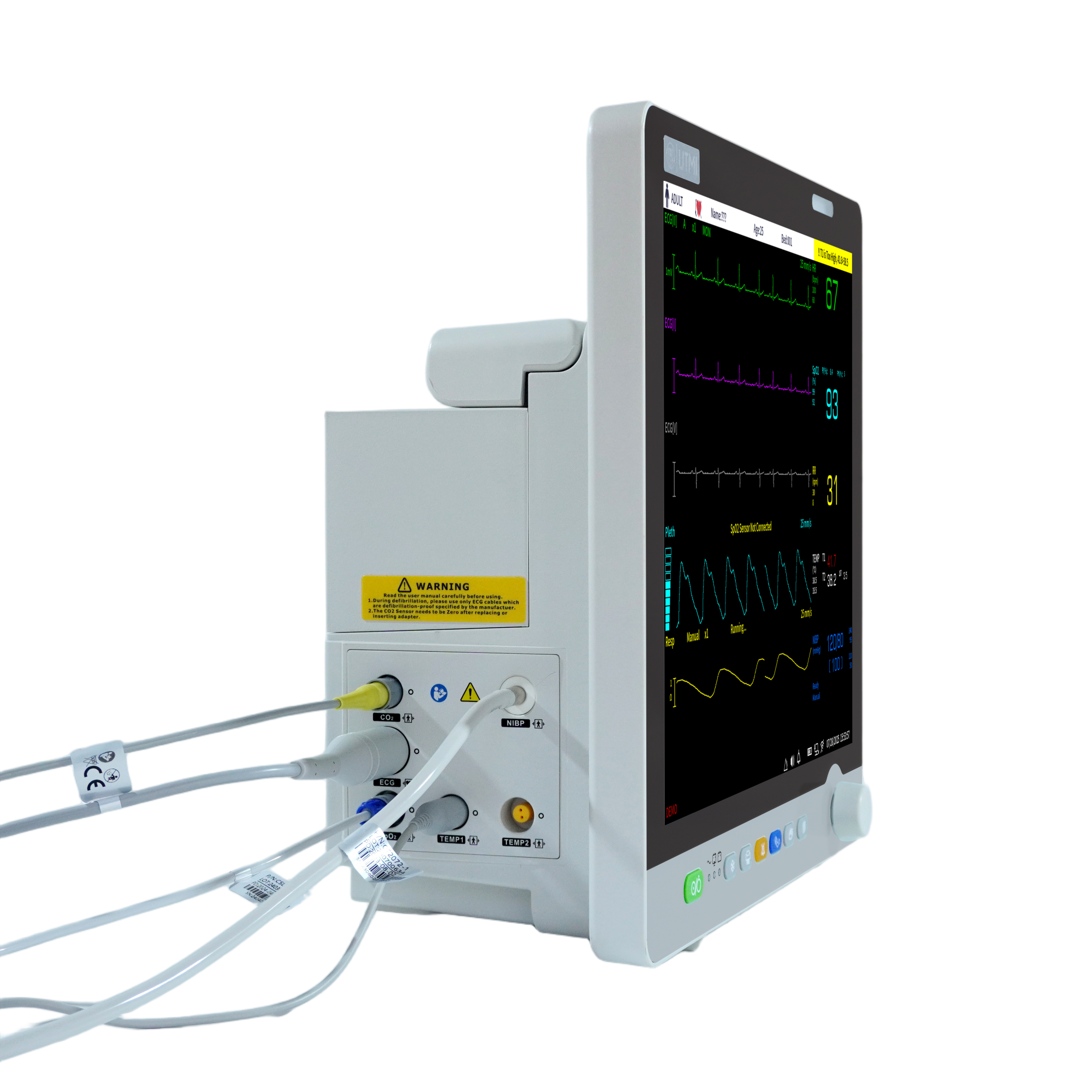

Accessory Box
This feature guarantees that all monitoring essentials are stored securely within arm's reach, right at the point of care. It enhances portability, ensures nothing is misplaced between uses, and ultimately allows medical staff to focus more on patient care and less on equipment logistics.
Central Monitoring Compatible
The UM2017 is equipped with advanced connectivity options, allowing it to be seamlessly integrated into a Central Monitoring System. This enables the real-time wireless transmission of patient data, facilitating streamlined data management.
Features of Patient Monitor
- Tilted 17 inch LCD high definition display.
- Equipped with accessory box, save more space.
- The rounded chamfer design with a sense of technology.
- Connect with the central monitoring system for remote and wireless monitoring.
- Large capacity storage, with power failure protection.
- The integrated module design ensures the safety, reliability and stability of monitor.
- 5 display modes: large character, OxyCRG Display Mode, trend table data and other multiple interfaces.
- The dexterous handle makes it convenient for medical staff to carry.
andheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitor
Specifications
| Display |
| LCD, 17.0-inch diagonal high-resolution TFT Active-Matrix LCD Resolution, 1280X 1024pixels |
| SpO2 |
| Range, 0-100% Functional Saturation Accuracy, ± 2 bpm or ± 2% of reading Resolution, 1 % Pulse Rate Range, 20 bpm to 350 bpm |
| ECG |
| Lead Set, 3-lead / 5-lead / 12-lead HR range, 20 bpm to 350 bpm Sweep Speed, 6.25 mm/s to 50 mm/s |
| NIBP |
| Method: Oscillometric Range: Systolic (40-270), Mean (30-220), Diastolic (20-200) mmHg |
| TEMP |
| Range, 0℃ to 50℃ Accuracy, ± 0.2 ℃ Channel, Two channel |
| CO2 (Optional) |
| Method: Main stream, NDIR Range: 0 to 15% / 0-114 mmHg |
| Respiration |
| Range: 0 to 120 rpm Accuracy: ±1 rpm |
| Power Requirement |
| AC Input: 100-240V a.c., 50/60 Hz Battery: 11.1V, 4.4mAh |
andheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitorandheld, 128mb handheld, 2g handheld, handheld monitor, handheld color baby monitor, MDR certified, capnograph, handheld lcd monitor, vital signs monitor, portable vital signs monitor, patient monitor with fetal monitor （密度0%） ,patient monitor 5 parameters （密度0%） ,oem 17 inches monitor （密度0%） ,17 inches （密度0%） ,monitor patient （密度0%） ,used lcd monitor 17 inches （密度0%） ,patient monitor1 （密度0.25%） ,patient safety monitor
Clinical Applications
ICU
Operation Room
CCU
