Model No: UM2012

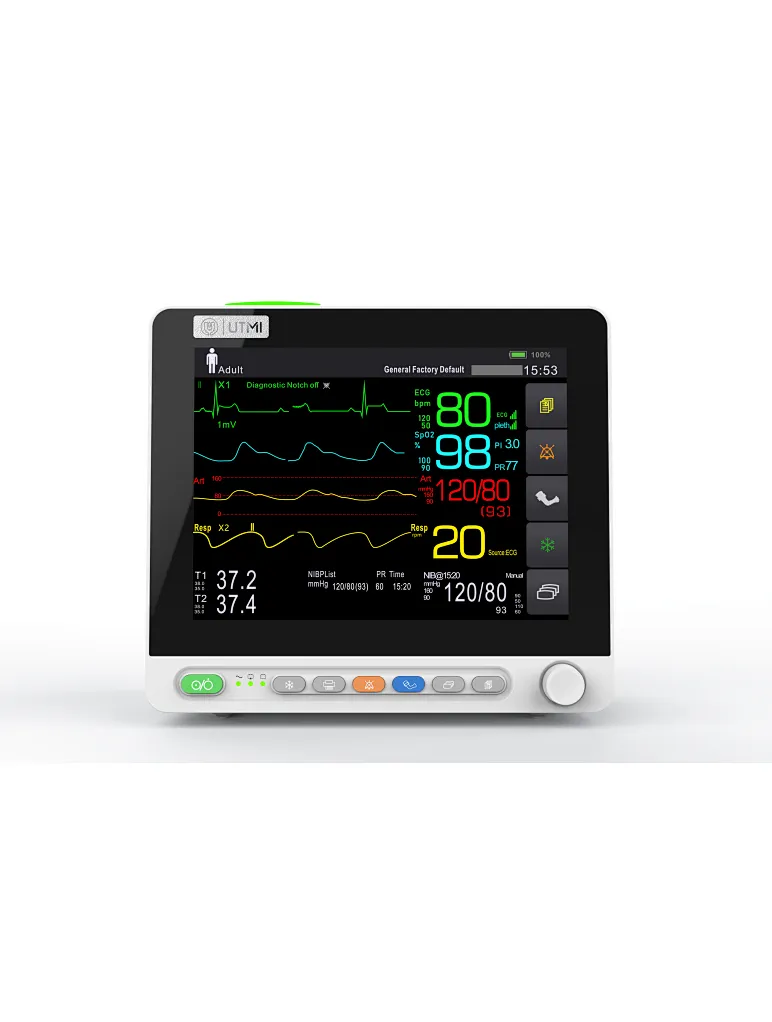

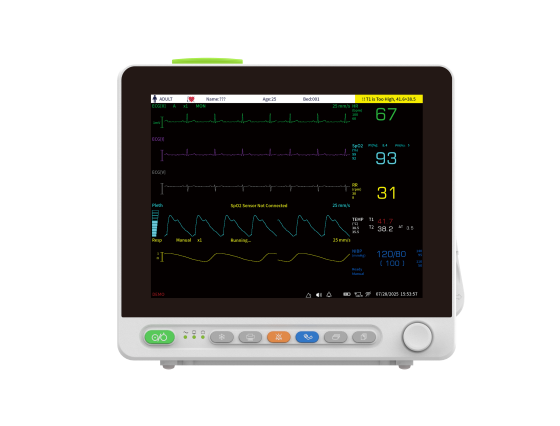

UM2012 12-INCH PATIENT MONITOR
The UM2012 Patient Monitor is a monitor that breaks the shape of the traditional monitor.
The unique inclined panel design makes the angle of the buttons.
The screen is more in line with the angle of human observation, a kind of humanized design.
It may be used in the hospital, clinical environment, home-care.
The rounded chamfer design makes it full of a sense of science and technology.
2 years warranty.
The unique inclined panel design makes the angle of the buttons.
The screen is more in line with the angle of human observation, a kind of humanized design.
It may be used in the hospital, clinical environment, home-care.
The rounded chamfer design makes it full of a sense of science and technology.
2 years warranty.
minimum order :
1 unit
Supply Ability :
2000unit / Month
Stock Time :
3Day
Quantity :
Description
Monitoring Within Reach
The UM series patient monitor puts reliable monitoring technologies at your fingertips. With its accurate readings and optimized performance, the UM series patient monitor can meet most basic monitoring needs, bringing easy access to high-quality healthcare for everyone.
Accurate and Trustworthy
ECG algorithm which is specially optimized for arrhythmia patients.
SpO2 algorithm with anti-motion performance.
NIBP algorithm with fast measurements.

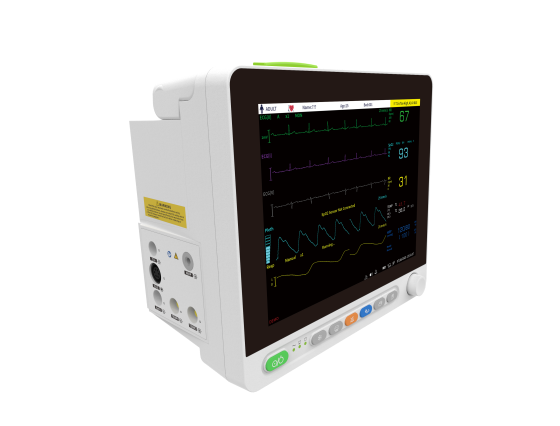

Accessory Box
This feature guarantees that all monitoring essentials are stored securely within arm's reach, right at the point of care.
It enhances portability, ensures nothing is misplaced between uses, and ultimately allows medical staff to focus more on patient care and less on equipment logistics.
Central Monitoring Compatible
The UM2012 is equipped with advanced connectivity options, allowing it to be seamlessly integrated into a Central Monitoring System.
This enables the real-time wireless transmission of patient data, facilitating streamlined data management.

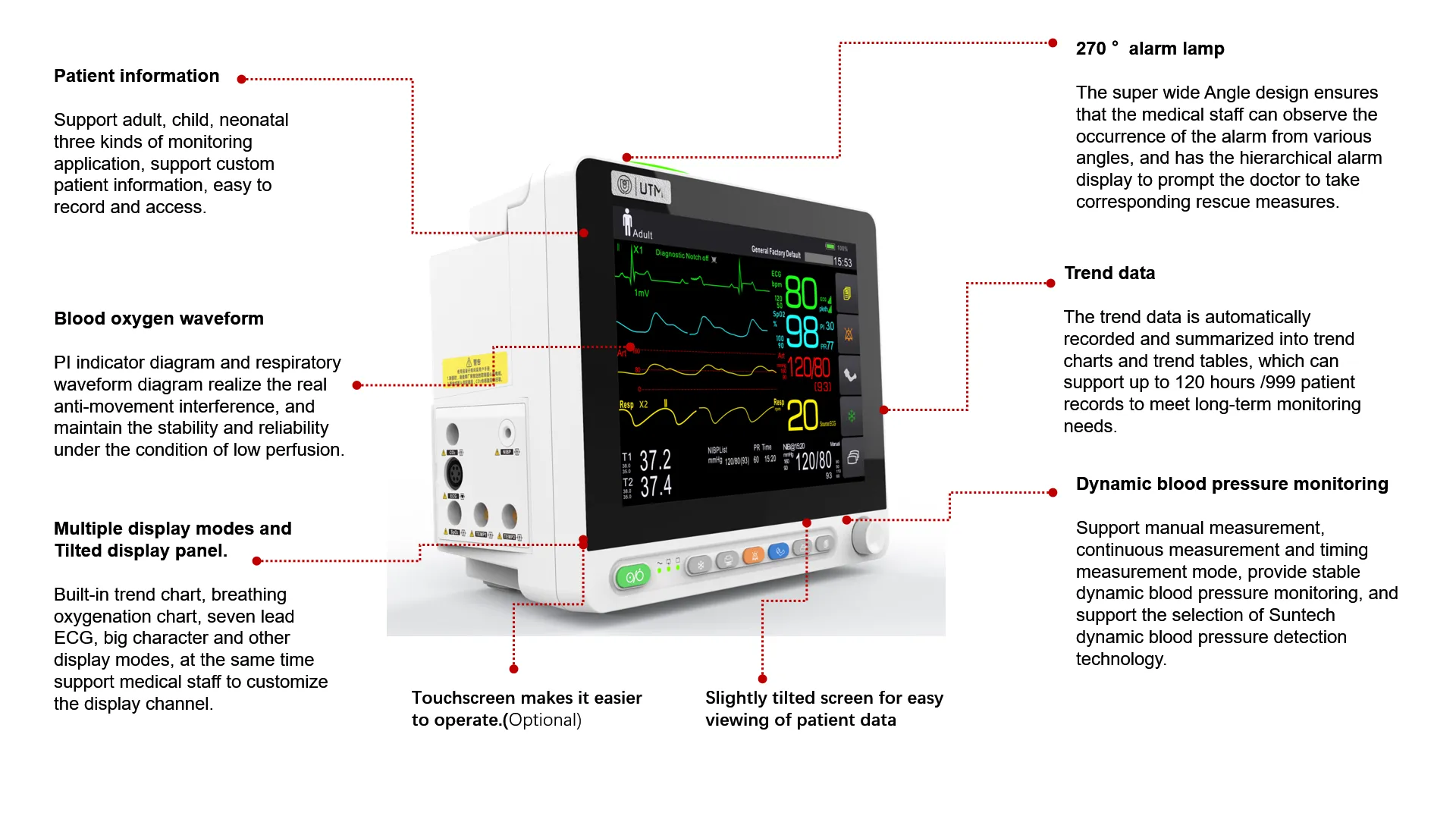

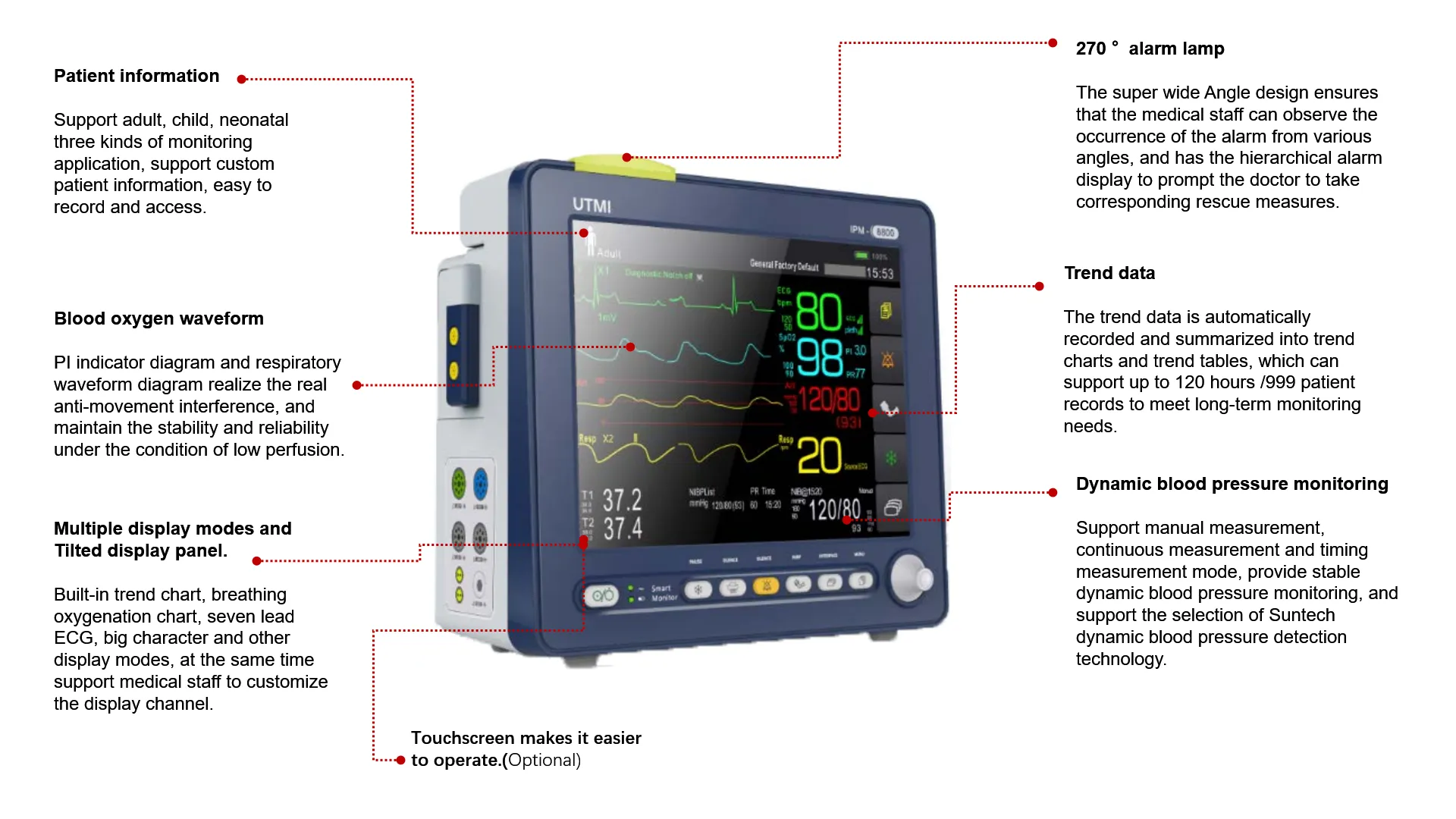

Features of Patient Monitor

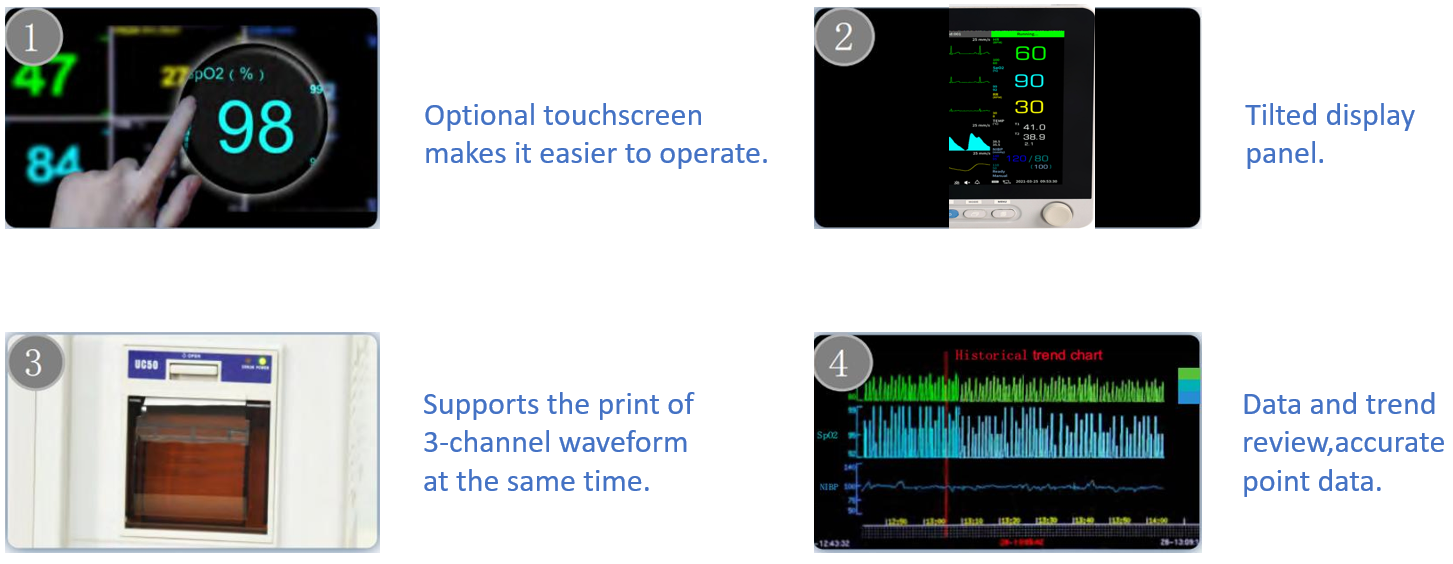

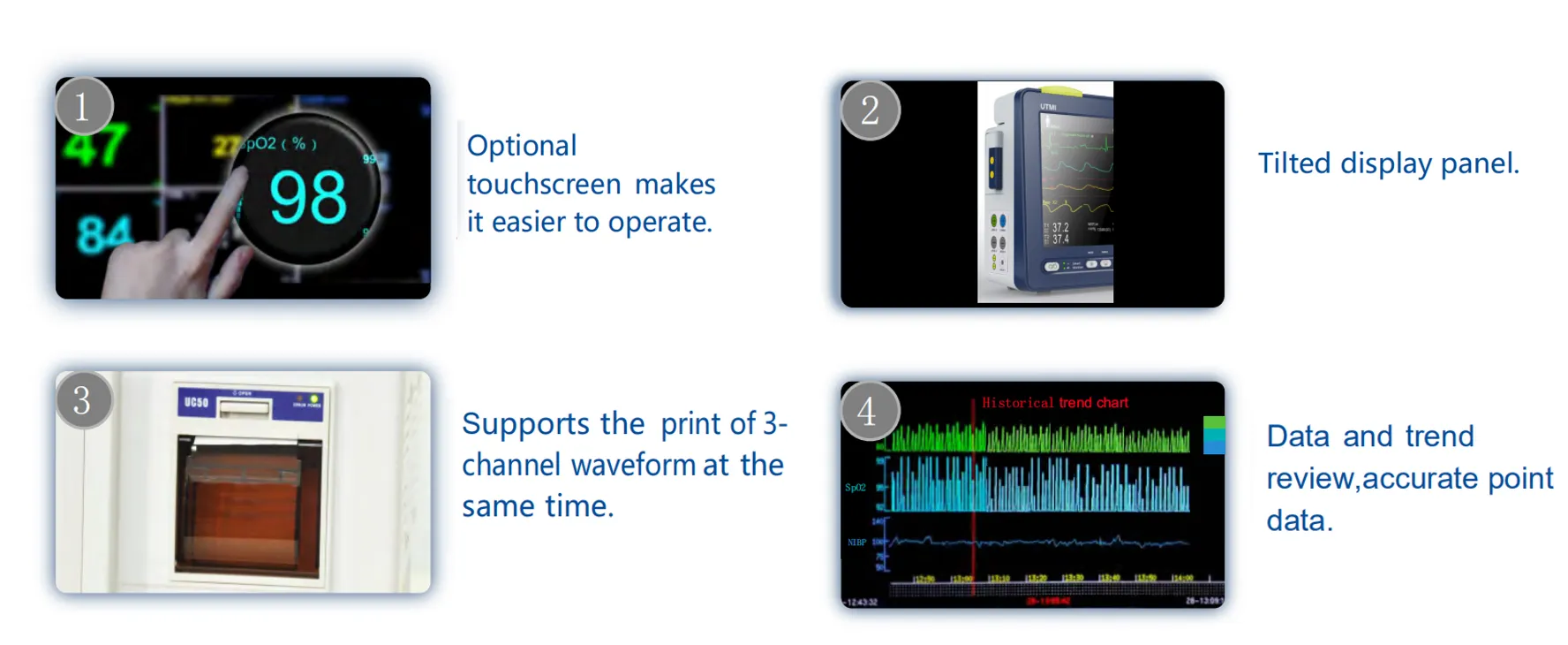

- Tilted 12.1 inch LCD high definition display.
- Equipped with an accessory box, save more space.
- The rounded chamfer design with a sense of technology.
- Connect with the central monitoring system for remote and wireless monitoring.
- Large capacity storage, with power failure protection.
- The integrated module design ensures the monitor's safety, reliability and stability.
- Five display modes: large character, OxyCRG Display Mode, trend table data and other multiple interfaces.
- The dexterous handle makes it convenient for medical staff to carry.
Specifications
| Display |
| LCD, 12.1 inch diagonal high-resolution TFT (Thin Film Transistor) Active Matrix LCD Resolution, 1024X 768pixels |
| SpO2 |
| Range, 0-100% Functional Saturation Accuracy, ± 2 bpm or ± 2% of reading (whichever is greater) Resolution, 1 % Pulse Rate Range, 20 bpm to 350 bpm Pulse Rate Accuracy, ± 2 bpm or ± 2% (whichever is greater) Resolution, 1 bpm |
| ECG |
| Lead Set, 3-lead: I, II, III 5-lead: I, II, III, V, aVR, aVL, aVF 12-lead: I, II, III, V1, V,2 V3, V4, V5,V6, aVR, aVL, aVF HR range, 20 bpm to 350 bpm Heart Rate Accuracy, Fixed 8 second averaging Resolution, 1 bpm Gain Selection, X 1/4, X1/2, X1, X2, X4,auto Sweep Speed, 6.25 mm/s; 12.5 mm/s; 25mm/s; 50 mm/s |
| NIBP |
| Method of Measurement, Oscillometric with step-down deflation Range, Systolic: (40 to 270) mmHg; Mean Arterial: (30 to 220) mmHg, Diastolic: (20 to 200) mmHg Units of Measure, mmHg, kPa(user-select able) Resolution, 1 mmHg Measurement Time, 30 s to 50 s typical, 120 s maximum Default Inflation Pressure, 165 mmHg - Adult 145 mmHg - Pediatric 90 mmHg - Neonate Cuff pressure rating, (0 to 300) mmHg Over pressure protection, Adult: 297±3 mmHg Pediatric: 297±3 mmHg Neonate: 147±3 mmHg |
| TEMP |
| Standards, (ISO 80601-2-56) Method, Thermal resistance Channel, Two channel Range, 0℃ to 50℃ / 32℉ to 122 ℉ Accuracy, ± 0.2 ℃ plus the temperature sensor tolerance Resolution, 0.1 ℃, 0.1℉ TEMP Alarm Range, High: 35.5 ℃ to 43.5 ℃ and OFF in 0.1 Increments; Low: 35.5 ℃ to 43.5 ℃ and OFF in 0.1 Increments |
| CO2 (Optional) |
| Mode of Sampling, Main stream Principle of Operation, Non-dispersive infrared, dual Wavelength, no moving parts. Initialization Time, Capnogram displayed in less than 4 seconds, At an ambient temperature of 25℃, full specifications within 3 minutes. CO2 Measurement Range, (0 to 114)mmHg, (0 to 15)% , (0 to 15.2 )kPa CO2 Response Time, Less than 500 ms CO2 Resolution, 0.2 mmHg @ (0 to59) mmHg; 0.5 mmHg @ (60 to 114)mmHg CO2 Accuracy, (0 to 40) mmHg ±2 mmHg (41 to 70) mmHg ±5% of reading (71 to 114) mmHg ±10% of reading Above 80 breaths per minute ±12 % of reading * Note: Gas temperature at 25 ℃ CO2 Stability, Short Term Drift: Drift over three hours shall not exceed 1 mmHg maximum.Long Term Drift: Accuracy specification will be maintained over a six hour period Sampling Rate, 100 Hz Respiration Rate Range, (4 to 150) breaths per minute Respiration Rate Accuracy, ±1 rpm Calibration, No routine user calibration required. |
| Respiration |
| Range，0 to 120rpm Accuracy，±1 rpm Resolution，1 rpm RESP Alarm Rang，High: 0 rpm to 120 rpm , and OFF Low: 0 rpm to 120 rpm , and OFF Lead，Lead Ⅱ |
| Environmental |
| Temperature, (0 to 50) ℃ (Operating) (-20 to +55) ℃ (Storage and Transport) Humidity, 15% to 95% (Operation) 10% to 95% (Storage and Transport) Barometric Pressure, (70 to 106) kPa (Operation , Storage and Transport) |
| Power Requirement |
| AC Input, (100 to 240)V a.c., 50/60 Hz, 60VA, FUSE T1.5A Rechargeable battery, 11.1V, 4.4mAh |
Clinical Applications
Hospitals
Home Care
Clinic
