0
  • Type:Pathological Analysis Equipments
  • Place of Origin:China
  • Instrument classification:Class II
  • Brand Name:UTECH
  • Model Number:SP100
  • Product name:veterinary syringe pumps
  • Certificate:ISO 13485
  • Warranty:1 Year
  • Packing Weight:3KG

Portable Electric Veterinary Syringe Pump for VET veterinary Hospital

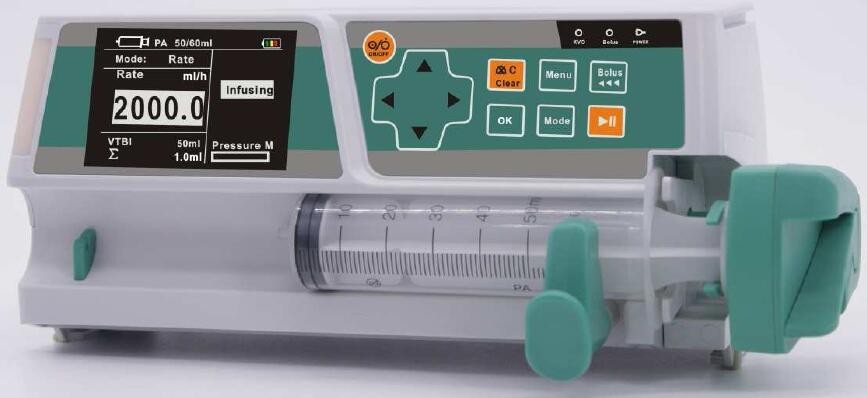

SP300 veterinary syringe

2 Colors

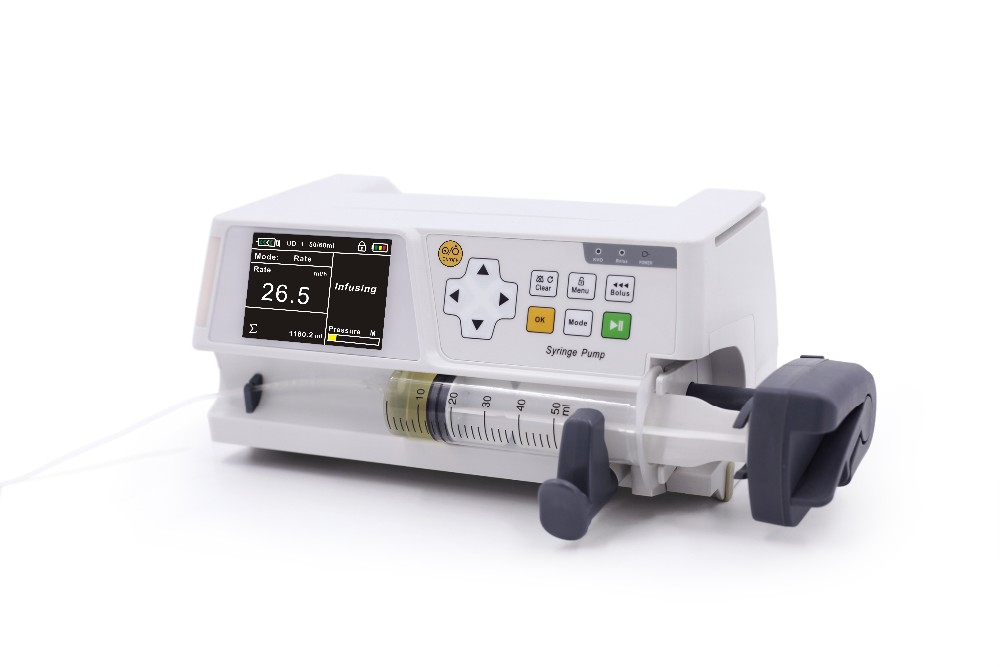

SP1 Syringe Pump veterinary syringe

Features:

1.Compatible with syringes from 5ml,10ml,20ml,30ml,50ml and 60ml.

2.Stackable to be the maximum 8 channels.

3.High accuracy +/- 2% after correct calibrated.

4.Five work modes: Rate Mode, Time Mode, Dose Mode, Sequential Mode and Drug library Mode.

5.Manual or Automatic Bolus /Purge/KVO function can be selected.

6.Vertical & Horizontal mounting clamp.

7.Anti-bolus system to reduce significantly after occlusion sudden release.

8.DPS dynamic pressure display.

9.5000 events stored can be checked and downloaded.

10.Large LCD display, the brightness can be adjusted to adapt to the clinical use of the environment.

Technical Specifications

PARAMETER

SPECIFICATION

Applicable syringes

5ml,10ml,20ml,30ml,50ml,60ml of any standard

Accuracy

+/- 2% with correct calibration

Rate mode

50ml(60ml):0.1ml/h-2000.0ml/h (0.1ml/h or 1ml/h step)

30ml:0.1ml/h-1200.0ml/h (0.1ml/h or 1ml/h step)
20ml:0.1ml/h-800.0ml/h (0.1ml/h or 1ml/h step)
10ml:0.1ml/h-400.0ml/h (0.1ml/h or 1ml/h step)

5ml: 0.1~200ml/h (0.1ml/h or 1ml/h step)

(Programmable 0.01ml/h~9999.9ml/h)

Time Mode

SOL. VOL:0.1-9999.9ml (0.1ml step)
TIME:00:01-99:59min (1min step)

Dose Mode:

Volume:0.1-999.9ml(0.1ml step)
DRUG MASS:0.1-999.9mg 0.1mg step)
DOSE:0.001-9999ug/kg/min(0.001ug/kg/min step)
WEIGHT:0.1-300kg(0.1kg the least step)

Doseunit: ng/kg/min,ug/kg/min,mg/kg/min,g/kg/min,ug/kg/h,mg/kg/h,g/kg/h,ug/min,mg/min,g/min,ug/h,mg/h,g/h,U/min,U/h,IU/h,U/kg/h,ml/h

Total Volume Range

0.1-9999.9ml (0.1 ml step)

Drug library Mode

10 categories of drugs, amounts to 1030 kinds of drug names,17kinds of dose units,such as ug/kg/min, mg/kg/min,etc.

Makes drug dispensing more convenient and safer. (Available for IP300only)

Sequential mode

Available for IP300only

Purge Rate

50ml(60ml):1500.0ml/h,

30ml:1200.0ml/h,

20ml:800.0ml/h

10ml:400.0ml/h, 5ml: 200ml/h

Programmable and adjustable

KVO Rate

0.1~5.0 ml/h, Programmable and adjustable

DPS dynamic pressure

Three levels setting LOW(60(±15)kPa), MEDIUM (90(±15)kPa)or HIGH (120(±15) kPa)

Alarms

Syringe Holder Loose,Syringe Plunger Disengagement,Syringe Flange Insertion Error,Syringe Not Calibrated, Occlusion, Syringe Empty,Rate Abnormal,Battery Empty,No Battery,Infusion Complete, Syringe Near Empty, No Action, Battery Low

Three levels of alarm volume LOW, MEDIUM or HIGH

Bolus Rate

5ml: 0.1~200ml/h,10ml:0.1-400ml/h,20ml:0.1-800ml/h,

30ml:0.1-1200ml/h,50ml(60ml):0.1-2000ml/h

Programmable and adjustable, Automatic/Manual bolus available

Bolus Volume

Range: 1.0~50.0ml, (0.1ml step)

Interface

RS-232

Brightness

1~10 levels can be selected

History records

5000 events stored can be checked and downloaded

Power source

AC power supply: AC 100 to 240V( +/-10%),50/60Hz;

DC Power supply: 12~15V, power>15W;

Built-in Lithium Battery: Rechargeable, 11.1V, 2000mAh.

12 hours of continuous operation

Accessories:

AC power line, Operational manual

Protection Class

Class I, Type CF,IPX4

Dimension / N.W

240mm*150mm*117mm , 2.0kg

Packing size/G.W

300mm*260mm*160mm, 3.0KG
