Some problems and solutions encountered in ECG monitoring
author: Karry
2023-12-06
|
What is the Difference Between a 3-lead and a 5-lead Cardiac Wire？
The 3-lead ECG can only obtain the I, II, III lead ECG, while the 5-lead ECG can obtain the I, II, III, AVR, AVF, AVL, V lead ECG.

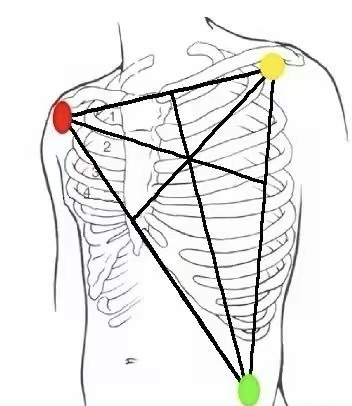

In order to facilitate quick connection, the color marking method is used to quickly glue the electrode at the corresponding position. The color of the 3-lead ECG conductor is marked as red, yellow, green or white, black, red; The color of the 5-lead cardiac conductor is white, black, red, green, and brown. The electrode positions of the wires with the same color in the two specifications leads are not the same, and the abbreviations RA, LA, RL, LL, and V are used to determine the position rather than memory color.  Why is it Recommended to Wear the Oximetry Finger Cuff First？
Because wearing the oximetry finger cuff is much faster than connecting the cardiac conductance line, the patient's pulse rate and blood oxygen saturation can be monitored in the shortest time, and the medical staff can quickly complete the assessment of the patient's most basic signs.
Can Oximetry Cuff and Sphygmomanometer Cuff be Placed on the Same Limb？
Blood pressure measurement will block the arterial blood flow, resulting in inaccurate blood oxygen saturation monitoring during blood pressure measurement, so it is not recommended to wear oxygen saturation finger cuff and automatic sphygmomanometer cuff on the same side of the limb.
Should the Electrodes be Replaced in Patients with Continuous ECG Monitoring？
It needs to be replaced, because the electrode is stuck on the same part for too long, which will lead to rash and blisters, so the skin should be checked frequently, even if the skin is intact, replace the electrode and the adhesive part once every 3-4 days to avoid causing skin damage to the patient.
Remember to remove the electrodes when the ECG monitoring is stopped.
If you want to learn more information, please check the link below: Patient monitor Pulse oximeter I UTECH (chinautech.com)
|
