​In the era of digital healthcare, flexibility and scalability have become critical drivers in medical device development. Modular patient monitors (MPMs) are emerging as a game-changer, replacing traditional fixed-function monitors with adaptable systems that can be tailored to diverse clinical needs. This blog explores their core value, technical architecture, real-world applications, and future trends.

​​1. What is a Modular Patient Monitor?​​

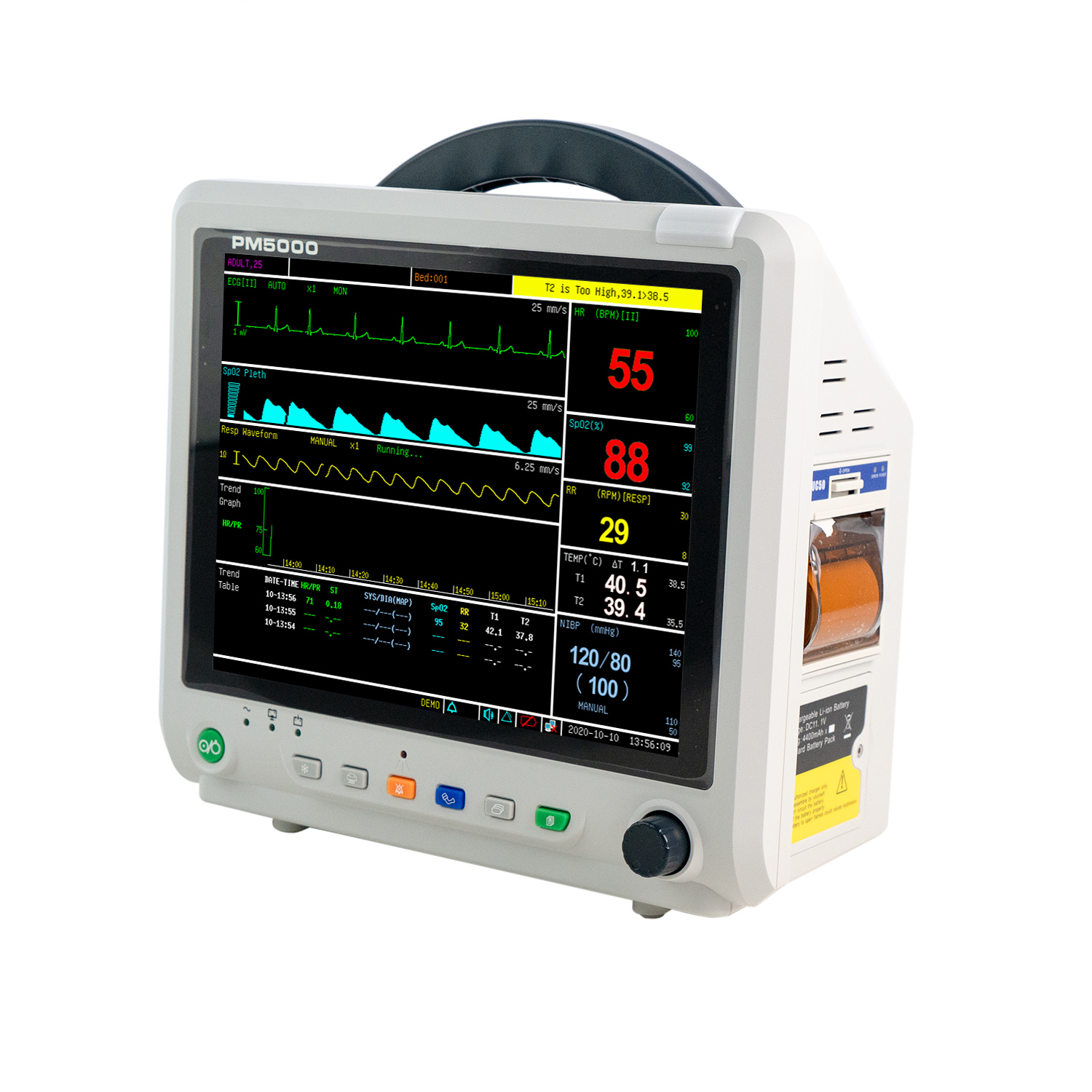

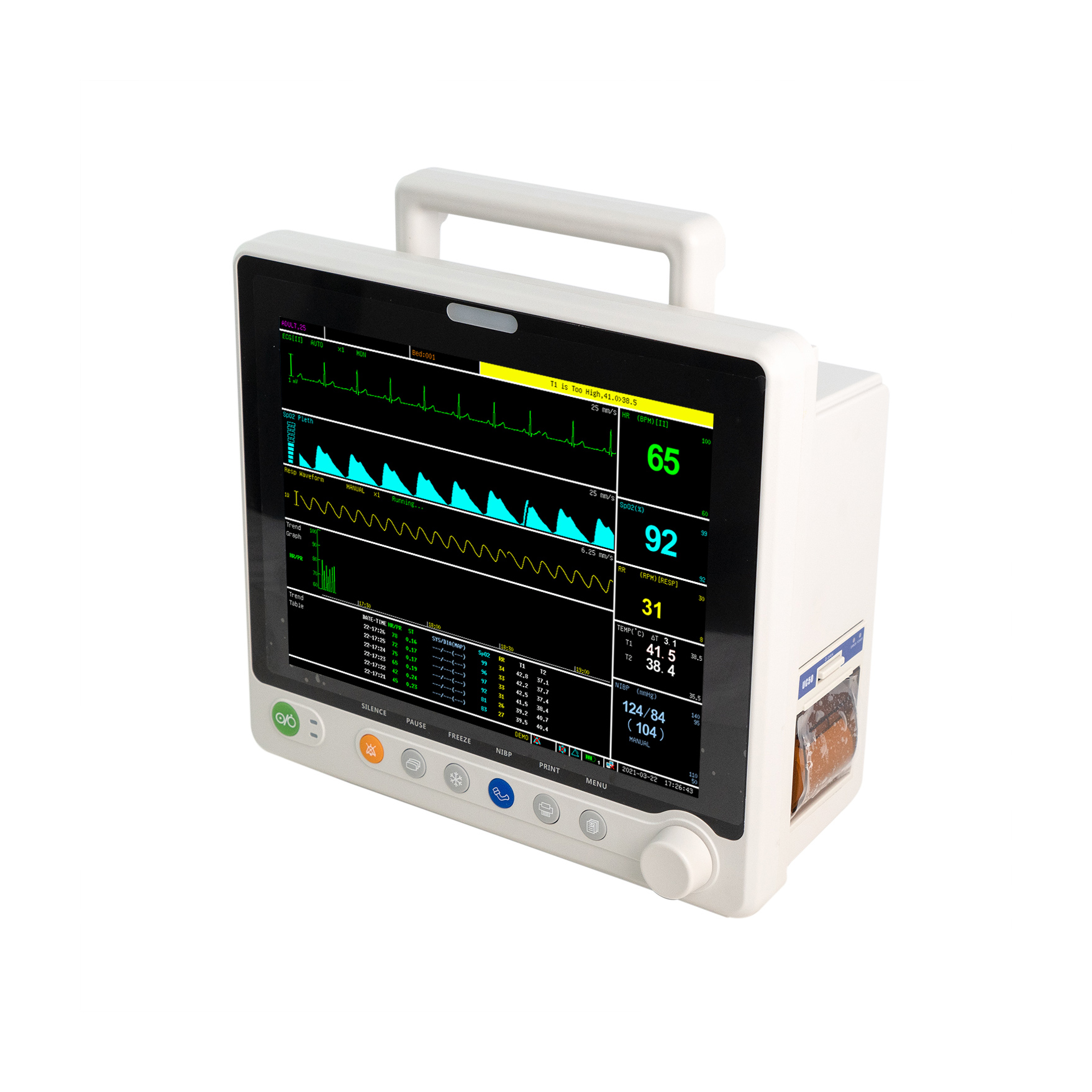

A modular patient monitor is a medical device that integrates multiple function modules via standardized interfaces, allowing clinicians to configure monitoring parameters (e.g., ECG, SpO₂, blood pressure, respiration) based on specific requirements. Key advantages over traditional monitors include:

• ​​Hardware Decoupling​​: Independent operation of modules (e.g., ECG, SpO₂) that can be added/removed via plug-and-play or wireless connections.
• ​​Software-Centric Design​​: Unified platform for data fusion and analysis across modules.
• ​​Hot-Swappable Modules​​: Rapid replacement or upgrades without downtime.

​​

2. Core Advantages of Modular Design​​

Enhanced Clinical Adaptability​​

• ​​On-Demand Configuration​​: Emergency departments can quickly add blood gas analysis modules, while general wards retain basic monitoring.
• ​​Multi-Scenario Support​​: A single device can adapt to ORs, transport units, or home care with modular upgrades.
• ​​Patient-Specific Solutions​​: Customized monitoring for neonates, ICU patients, or other special populations.

​​ Operational Efficiency Revolution​​

• ​​Module-Level Maintenance​​: Faulty modules are replaced individually, avoiding full-device disposal (a common issue with traditional monitors).
• ​​Hot-Swapping​​: Modules can be swapped during operation (compliant with IEC 60601-1 safety standards).
• ​​Remote Upgrades​​: New features (e.g., AI anomaly detection) are added via software, eliminating hardware changes.

​​Cost Control and Sustainability​​

• ​​Reduced E-Waste​​: Individual modules last 5–8 years vs. 3–5 years for traditional devices.
• ​​Resource Sharing​​: Hospitals can centrally manage modules (e.g., temporarily reallocating unused BIS modules to ORs).

3. Key Technical Architecture​​

​​Standardized Communication Interfaces​​

• ​​Hardware​​: USB-C, HDMI, Ethernet, or CAN bus/PCIe for high-speed data transfer.
• ​​Software​​: HL7/FHIR compliance for interoperability across vendors.
• ​​Protocol Conversion​​: Chips like TI’s Sitara processors handle diverse sensor signals.

​​Distributed Computing Architecture​​

• ​​Edge Nodes​​: Each module has a microprocessor (e.g., ARM Cortex-M) for local data processing.
• ​​Central Coordinator​​: Manages data fusion, alarms, and user interface.
• ​​Cloud-Edge Synergy​​: Critical data syncs to hospital systems (HIS) while retaining offline capability.

​​ Safety and Reliability​​

• ​​Electrical Isolation​​: Optical or transformer isolation between modules (IEC 60601-1 Ed.3 compliant).
• ​​Redundancy​​: Critical modules (e.g., power supplies) support hot backup.
• ​​Cybersecurity​​: AES-256 encryption prevents data tampering during transmission.

​​

4. Industry Applications​​

​​ Intensive Care Units (ICUs)​​

• ​​Typical Setup​​: 12-lead ECG + hemodynamic monitoring + BIS.
• ​​Expandable Needs​​: Rapid integration of CGM or intracranial pressure modules.

​​Operating Rooms (ORs)​​

• ​​Core Functions​​: Anesthesia depth monitoring + neuromuscular blockade + real-time blood gas analysis.
• ​​Special Requirements​​: Sterile wireless modules (e.g., Bluetooth 5.0 for handheld devices).

​​Home Healthcare​​

• ​​Basic Kit​​: Heart rate, SpO₂, temperature.
• ​​Optional Upgrades​​: ECG patch sensors (for AFib screening), sleep apnea monitors.

​​Conclusion​​

Modular patient monitors symbolize a shift from "rigid designs" to "flexible architectures" in medical devices. With advancements in IoT, AI, and materials science, future monitors will evolve into "adaptive medical computers"—capable of meeting today’s needs while evolving for tomorrow’s challenges.

UTECH has been moving towards the goal of modularity and has achieved certain results. In the future, our products will definitely be able to do better.
