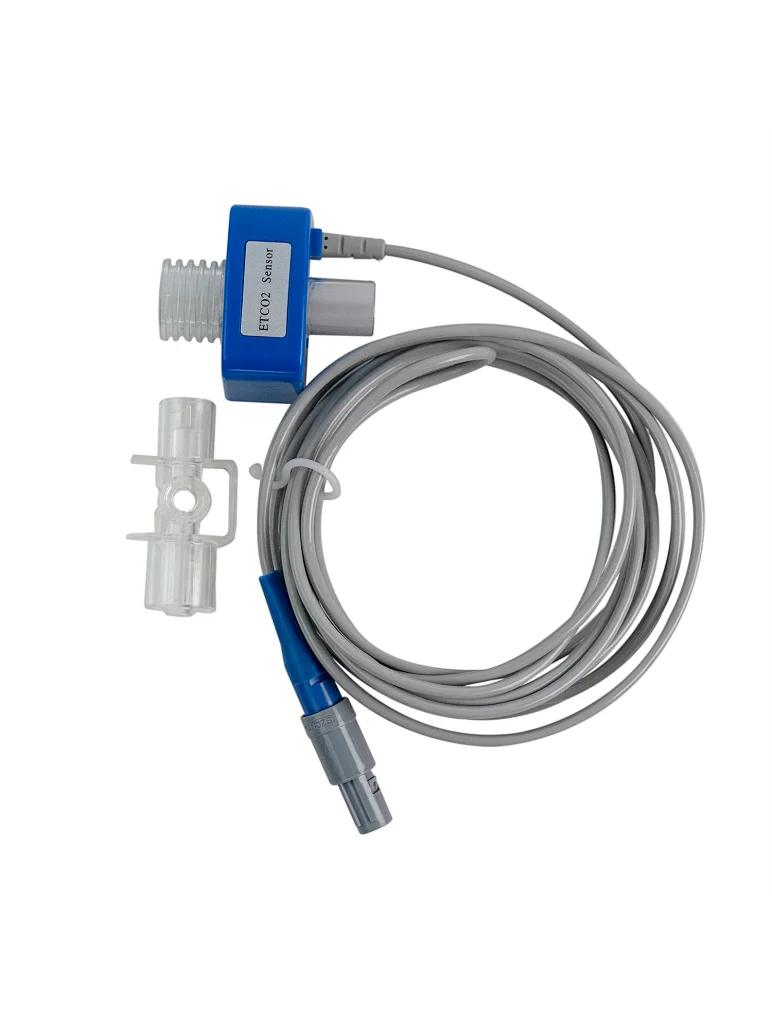

Mainstream ETCO2 Sensor
CAPM-M
Quantity
Overview
Mainstream CO2 sensors offer non-invasive measurement of ETCO2 with a rapid response CO2 sensor. It uses an infrared sensor to measure carbon dioxide directly at the end of the endotracheal tube.
Features
- Patameters: ETCO2, FICO2 and RESP
- Suitale for intubated patients during surgical process
- Assisting the doctor in judging when to connect and remove the ventilator
- Cheking and confirm ET tube placement
- Alaming when accidental extubating occurs
- Detecting ventilator airway connection
- Compatible with Respironics module's communication protocol
- OEM and ODM service are available
Technical Specification
- Transducer Type: Mainstream CO2 sensor
- Principle of Operation: Non-dispersive infrared (NDIR)
- Initialization Time: Capnogram displayed in less than 20 seconds
- CO2 Measure Range: 0–150 mmHg/0–19.7 %/0–20 kPa
- CO2 Accuracy : 0-40mmHg ±2 mmHg
71 – 100mmHg ±8% of reading
101-150mmHg ±10% of reading
Application
Mainsteam ETCO2 sensor is for ideal for intubated patients:
• Airway confirmation and management
• Ventilator management
• Resuscitation
• Transport
