- Place of Origin:CN
- Model Number:UT-1206
- Brand Name:UTECH
- Properties:Diagnosis & Injection
- LCD display:480*680 7 inch color screen LCD
- Machine weight:Machine weight
- Paper size:80mm*20m roll type or Z-fold thermal paper
- Lead:12 leads,Standard or Cabrera,
- Gross weight:3.8KG
- Machine Dimension:285(W)*200(D)*55mm(H)
- Channel:6 Channel

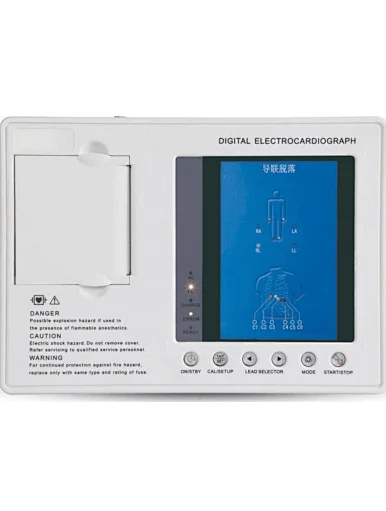

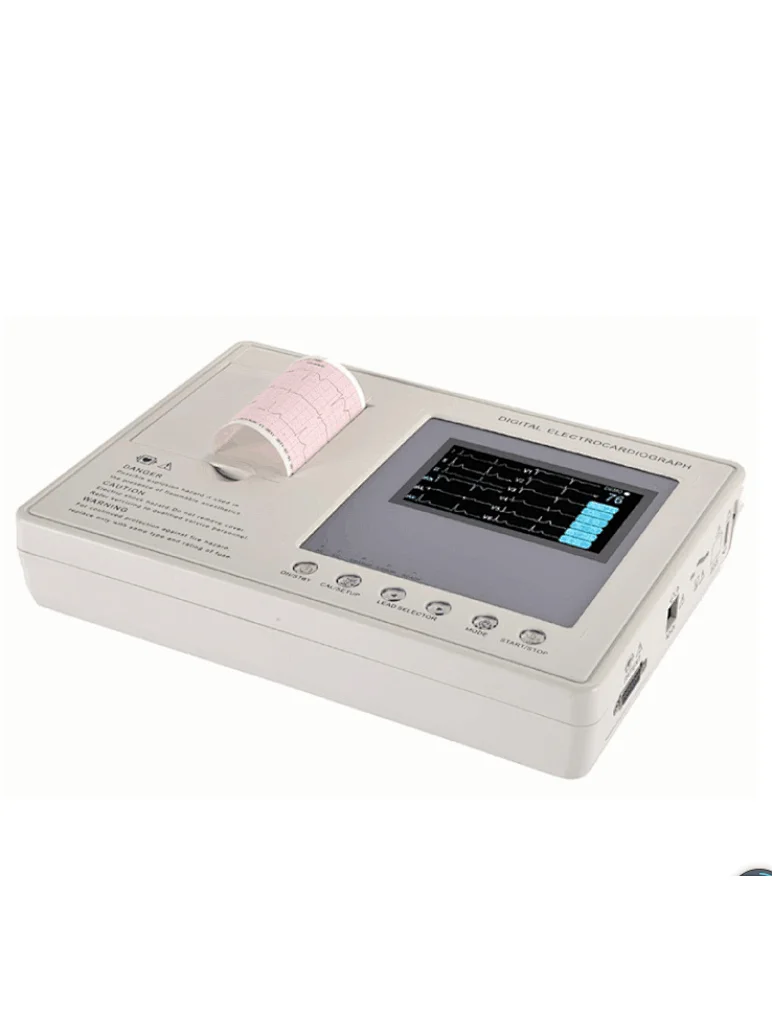

China Hospital 12 Lead ECG Machine 6 Channel
Model :MC-1206G
Features
Portable delicate design, big color touch LCD, very easy to operate
Accurate pulse pace identification and excellent auto-interpretation function
High accuracy digital filter, auto baseline adjustment
12 leads synchronously acquisition and display; Record mode : 3ch, 3ch+, 3ch+++, 6ch
Working modes: Manual / Auto / Analysis / Storage
800×480 graphic 7 inch color touch LCD screen
250 cases storage and replay(SD card storage is optional)
Built-in rechargeable Li-ion battery supports continuous work for about 4 hours.
112mm*20m high resolution thermal printing

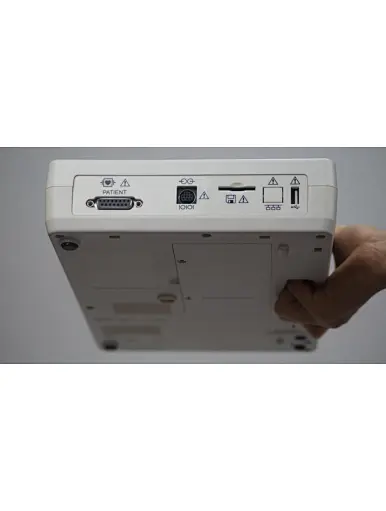

Rs232 and USB interface ( USB disk storage,laser printer printing , PC ECG software are optional )
Language : English, Chinese, French, Italian, Spanish, Russian
300mm*230mm*75mm, 2.8kgs
Technical Specification
Lead Standard 12 leads
Time constant ≥3.2s
lead acquisition 12bit/1000Hz (synchronously 12 leads) Frequency response 0.05~160Hz(-3db)
Work mode Man / Auto/Analysis/Storage Noise level <15μVp-p
Filter AC Filter : 50Hz / 60Hz
EMG Filter : 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive) Inter-channel Interference ≤0.5mm
CMMR ≥120dB (with AC FILTER) Sensitivity 2.5,5,10,20, 40, Auto (mm/mV)
Input circuit Floating; Protection circuit against
Defibrillator effect Recording mode 3ch,3ch+,3ch+++,6ch
Default Man. Mode is 3ch format
Default Auto. Mode is 6ch+ format
Input Impedance ≥50MΩ Paper speed 6.25,12.5,25,50mm/s(±3%)
Input circuit current ≤0.05μA Paper 112mm *20m Roll paper
Patient current leakage <10μA Communication RS232/ USB port ( optional )
Calibrating voltage: 1mV±2% Power Supply AC 110-230V(±10%),50/60Hz(±1Hz),40VA
DC Built-in rechargeable battery,14.4V(2000mAh)
Voltage tolerance ≥±500mV Dimension/Weight 300mm×230mm×75mm/2.8Kg
Package
1 unit / small carton : 40cm*34cm*22cm, net weight 2.8kgs, gross weight 5kgs
4 units / big carton : 70cm*41cm*46cm, net weight 12kgs, gross weight 22kgs
