Description
Precision at Every Rate

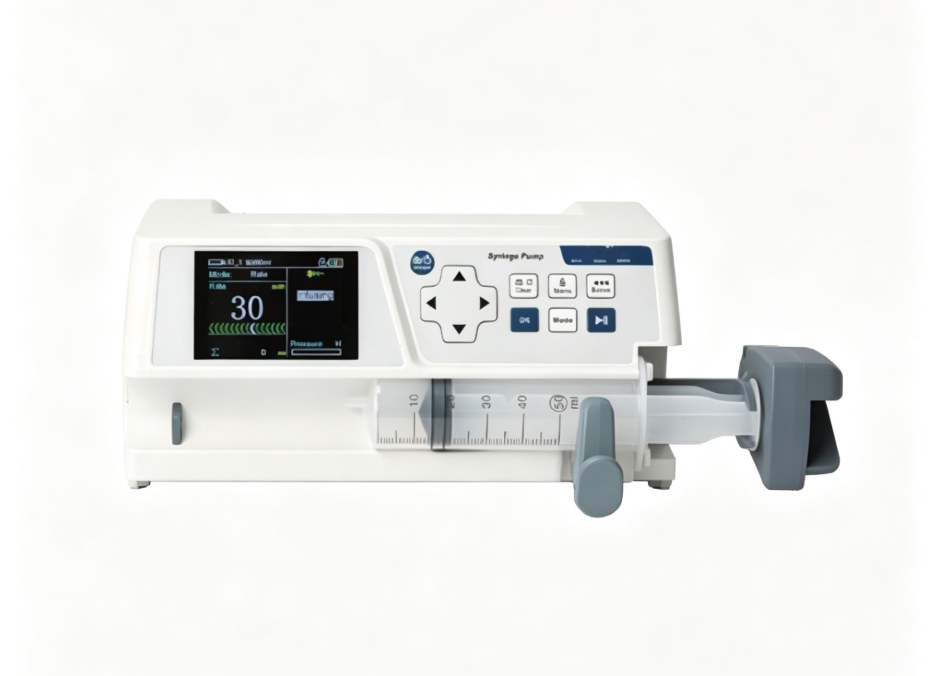

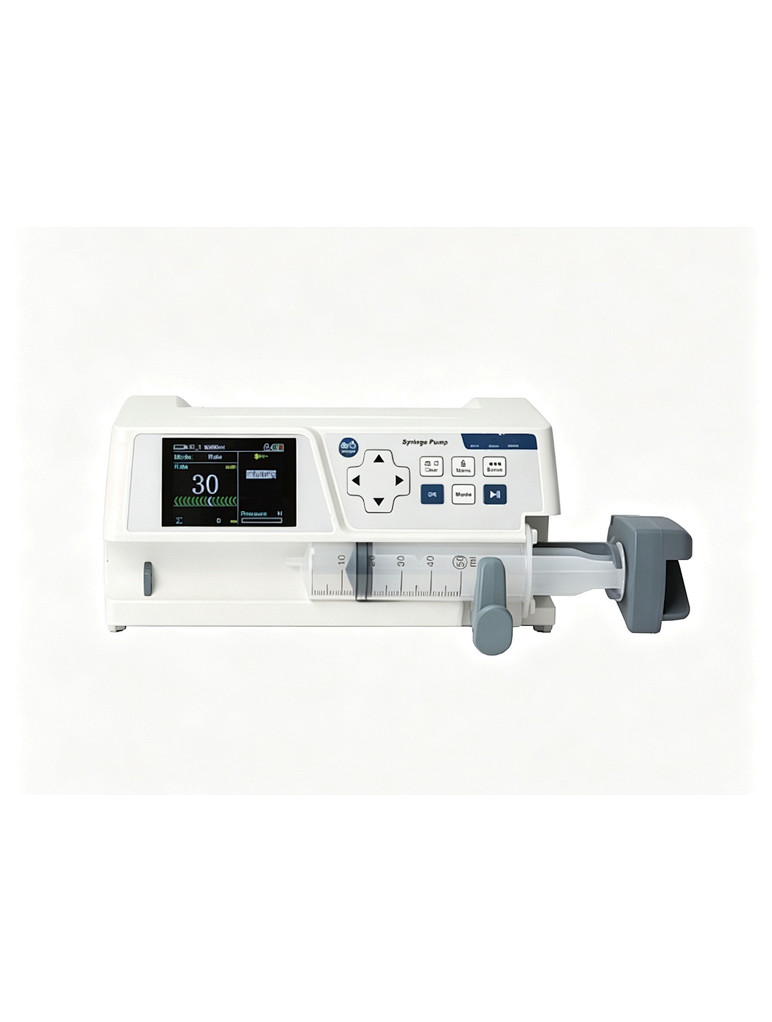

DPfusion SP300V is a veterinary single‑channel syringe pump delivering precise, continuous infusion across a wide flow range. Five infusion modes — Rate, Time, Dose, Sequential and Drug Library — cover routine maintenance fluids to complex, weight‑based drug dosing.
Flow is settable from 0.1 mL/h with an accuracy of ±2%, giving clinicians fine control over every delivery.
Accurate and Trustworthy
Infusion reliability is protected at every step: syringe calibration keeps accuracy consistent, a 25‑level occlusion alarm detects line blockage early, and an automatic anti‑bolus function limits the bolus released on pressure relief.
Class I, CF‑type applied part with IPX4 splash protection — built for dependable bedside performance.
Built for the Veterinary Ward
Each SP300V is a compact, stackable unit: up to 8 pumps can be mounted on one infusion stand to build 2–8 channel configurations as patient load grows.
An internal rechargeable battery delivers roughly 8 hours of operation (at 5 mL/h), while an optional WiFi interface enables networked monitoring.
Versatile Clinical Performance
Supporting weight‑based medication delivery from small pets up to large animals of 300 kg, the pump adapts to diverse veterinary patient cases for surgery, anesthesia and critical care.
Rich configurable parameters meet complex veterinary clinical medication requirements.
Features
- Five infusion modes — Rate, Time, Dose, Sequential and Drug Library (Sequential and Drug Library are optional).
- Bolus and Purge functions for rapid delivery and line priming.
- KVO (Keep Vein Open) rate maintains patency after the programmed volume is delivered.
- 25‑level occlusion alarm pressure setting with automatic anti‑bolus release; maximum pressure up to 250 kPa.
- Internal rechargeable Li‑ion polymer battery — approximately 8 hours at 5 mL/h, seamless backup during power cuts.
- Stackable design — up to 8 pumps on one stand to form 2‑8 channel configurations.
- Class I, CF‑type applied part, IPX4 splash protection.
- Supports 5/10/20/30/50/60 mL ISO 7886‑1 Luer syringes, with calibration service for other brands.
- Optional WiFi for networked monitoring and secure connectivity.

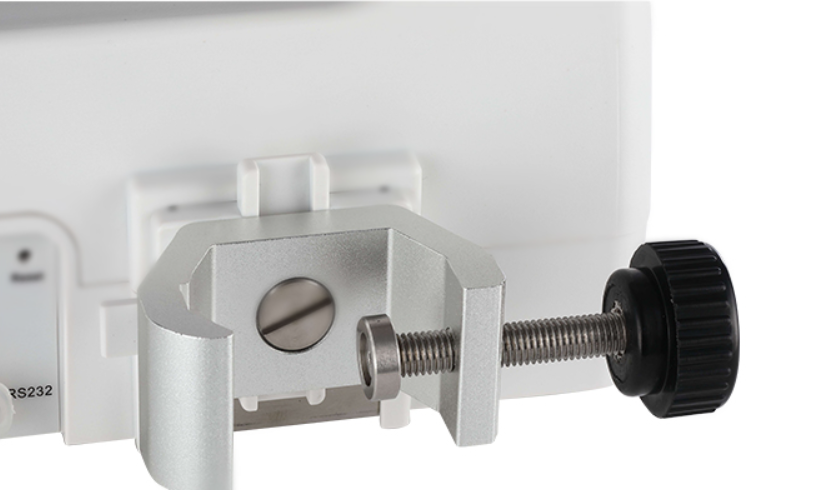

- Compact, portable body with pole clamp (15‑35 mm) for flexible installation.
Specifications
Infusion
| Item | Specification |
|---|---|
| Flow rate range | 5 mL: 0.1–200.0 mL/h · 10 mL: 0.1–400.0 mL/h · 20 mL: 0.1–800.0 mL/h · 30 mL: 0.1–1200.0 mL/h · 50/60 mL: 0.1–2000.0 mL/h |
| Flow rate increment | 0.01 / 0.1 / 1 mL/h |
| Accuracy | ±2% (mechanical ±1%, flow ±2%) |
| Volume to be infused | 0.0–9999.9 mL (increment 0.1 mL) |
| Infusion time | 00:00:01–99:59:59 (hh:mm:ss, increment 1 s) |
| Bolus volume | 1.0–50.0 mL (increment 0.1 mL) |
| KVO rate | 0.1–20 mL/h or the last delivery rate, whichever is smaller |
Dose Mode
| Item | Specification |
|---|---|
| Dose range | 0.001–9999 (increments 0.001 / 0.01 / 0.1 / 1) |
| Dose units | ng/kg/min … g/kg/h, U/IU/kg/min·h, ng/min … g/min, U/IU/min, ng/h … g/h, U/IU/h, mL/h |
| Patient weight | 0.1–300.0 kg (increment 0.1 kg) |
| Drug mass | 0.1–999.9 mg (increment 0.1 mg) |
| Solution volume | 0.1–999.9 mL (increment 0.1 mL) |
Occlusion Alarm
| Item | Specification |
|---|---|
| Pressure levels | 25 levels, 20–160 kPa (±15 kPa) |
| Maximum occlusion pressure | 250 kPa |
| Anti‑bolus release | ≤0.5 mL on occlusion release |
Power
| Item | Specification |
|---|---|
| AC power | 220 V ~, 50 Hz (with good ground protection) |
| Fuse | 250 V a.c., 2 pcs |
| Maximum power | 35 VA |
| Power consumption | <10 W (standard operating conditions) |
| External DC (optional) | 12–15 V, >15 W |
| Battery | Li‑ion polymer, 7.2 V, 2600 mAh |
| Battery life | ≈8 hours at 5 mL/h; ≥5 hours at maximum rate |
| Battery recharge | Pump off <10 h · Pump on <14 h |
Physical
| Item | Specification |
|---|---|
| Dimensions | 265 × 160 × 117 mm (excluding pole clamp protrusion) |
| Weight | 2.1 kg (pump) · 2.9 kg (packaging) |
Compliance
| Item | Specification |
|---|---|
| Standards | IEC 60601‑1:2006 · IEC 60601‑2‑24:1998 · IEC 60601‑1‑2:2007/AC2010 · IEC 60601‑1‑8:2008 · IEC 60529:2001 |
| Classification | Class I, internal power supply, CF‑type applied part, continuous delivery |
| Protection | IPX4 splash protection |
Clinical Applications
