Description
Accurate Infusion in Every Mode
With ±2% flow accuracy (with correct calibration) and a 0.1–2000.0 ml/h rate range, the SP300 delivers stable, precise infusion across Rate, Time and Dose modes.
It is compatible with 5–60 ml standard syringes, adapting to a broad range of infusion needs in hospital, clinic and home care settings.
Multiple Infusion Modes for Versatile Therapy
Rate, Time and Dose modes, a built‑in drug library, sequential mode, and Purge and KVO functions support flexible, routine and combined therapies.
Built‑In Safety You Can Rely On
An anti‑bolus system, DPS occlusion pressure monitoring (25 levels, 20–160 kPa) and 10 comprehensive alarms help prevent unintended boluses and detect infusion issues early.
Portable, Visible and Connected
An adjustable‑brightness color TFT display shows flow rate, infused volume, VTBI, volume balance, infusion time, remaining time and battery capacity at a glance.
5,000 event history records, a USB interface and optional Wi‑Fi enable data review, download and remote monitoring.
Features of SP300
- Manual or automatic bolus function for rapid drug delivery on demand.

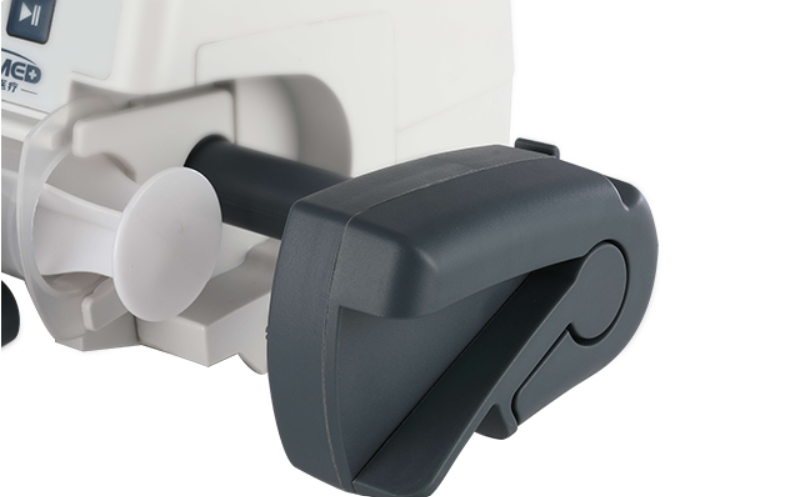

- Vertical and horizontal mounting clamp for flexible bedside, pole and transport placement.
- Anti‑bolus system to prevent unintended bolus delivery.
- DPS occlusion pressure display (25 levels, 20–160 kPa) for real‑time line status.
- Multiple infusion modes — Rate / Time / Dose — with drug library and sequential mode.
- Purge and KVO functions for line priming and maintaining patency after infusion.
- Large color TFT display with adjustable brightness (1–10 levels) for clear visibility.
- Comprehensive alarm system with three‑level volume (Low / Medium / High) and silent function.
- USB interface and optional Wi‑Fi with 5,000 event history records for review and download.
- Built‑in rechargeable battery supporting up to 8 hours of continuous operation.
Specifications
General
| Parameter | Specification |
|---|---|
| Applicable syringes | 5, 10, 20, 30, 50, 60 ml of any standard |
| Accuracy | ±2% with correct calibration |
Infusion Modes
| Parameter | Specification |
|---|---|
| Rate mode | 0.1–2000.0ml/h (0.1ml/h or 1ml/h step) |
| Time mode | Sol. Vol.: 0.1–9999.9ml (0.1ml step); Time: 00:01–99:59 min (1 min step) |
| Dose mode | Volume: 0.1–999.9ml; Drug mass: 0.1–999.9 mg; Dose: 0.001–9999; Weight: 0.1–300 kg |
| Total volume range | 0.1–9999.9ml (0.1 ml step) |
| Drug library mode | Available |
| Sequential mode | Available |
| Purge rate | Programmable and adjustable |
| KVO rate | 0.0–20.0ml/h, programmable and adjustable |
Bolus
| Parameter | Specification |
|---|---|
| Bolus rate | 0.1–2000 ml/h, programmable and adjustable; automatic/manual bolus available |
| Bolus volume | 1.0–50.0 ml (0.1ml step) |
Occlusion & Safety
| Parameter | Specification |
|---|---|
| DPS occlusion pressure | 25 levels: 20–160 kPa, programmable and adjustable |
| Alarms | Loose, Occlusion, Empty, Near Empty, Rate Abnormal, Low Battery, No Battery, Infusion Complete, No Action, Syringe Plunger Disengagement |
| Alarm volume | Three levels: Low, Medium or High |
| Silent function | Available |
Display & Interface
| Parameter | Specification |
|---|---|
| Display | Large color TFT display, adjustable brightness (1–10 levels) |
| Interface | USB |
| Wi‑Fi function | Optional |
| History records | 5,000 events stored, can be checked and downloaded |
Power & Protection
| Parameter | Specification |
|---|---|

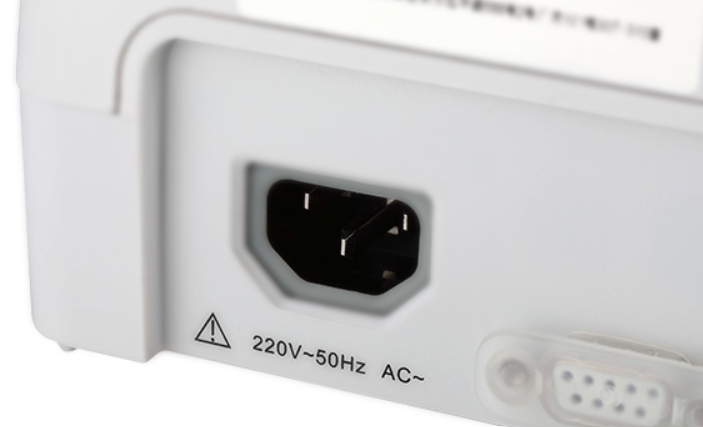

| AC power supply | AC 100–240 V (±10%), 50/60 Hz |
| DC power supply | 12–15 V, power > 15 W |
| Battery | Built‑in rechargeable lithium battery, 7.2 V, 2600 mAh; ~8 hours of continuous operation |
| Protection class | Class I, Type CF, IPX4 |
Physical
| Parameter | Specification |
|---|---|
| Dimensions / N.W. | 240 × 150 × 117 mm / 2.5 kg |
| Packing size / G.W. | 300 × 260 × 160 mm / 3.0 kg |

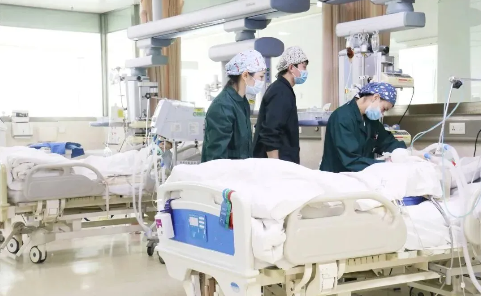

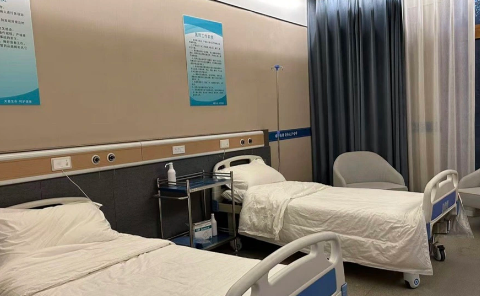

Clinical Applications
