VDS-320 Ranch & Laboratory Endoscope
VDS-320
The VDS-320 Ranch & Laboratory Endoscope is a portable, multi-functional veterinary video endoscope system specifically designed for large animals (such as horses and cattle) and laboratory environments. Integrating high-definition imaging, portable design, and high durability, this system aims to provide veterinarians and researchers with precise and efficient solutions for direct internal visualization and minimally invasive procedures.
Quantity
Description
Precision Imaging for Large Animal and Research Settings
The VDS-320 is a specialized veterinary and laboratory endoscope system, designed to withstand the rigors of ranch work and the exacting demands of scientific research. Combining a high-brightness 15.6-inch touchscreen with a powerful integrated light source, it delivers consistent, high-fidelity 1080P visuals—empowering veterinarians and researchers to make accurate diagnoses in the field or in the lab.

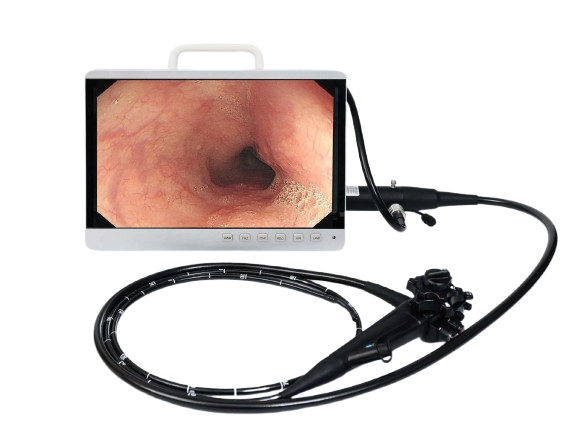

Stunning 1080P FHD Imaging with Real-Time Capture
Equipped with a 15.6-inch high-resolution touchscreen, the VDS-320 brings every subtle mucosal detail into sharp focus. The system supports real-time snapshot and video recording, allowing clinicians to easily document critical findings for further analysis or client communication.

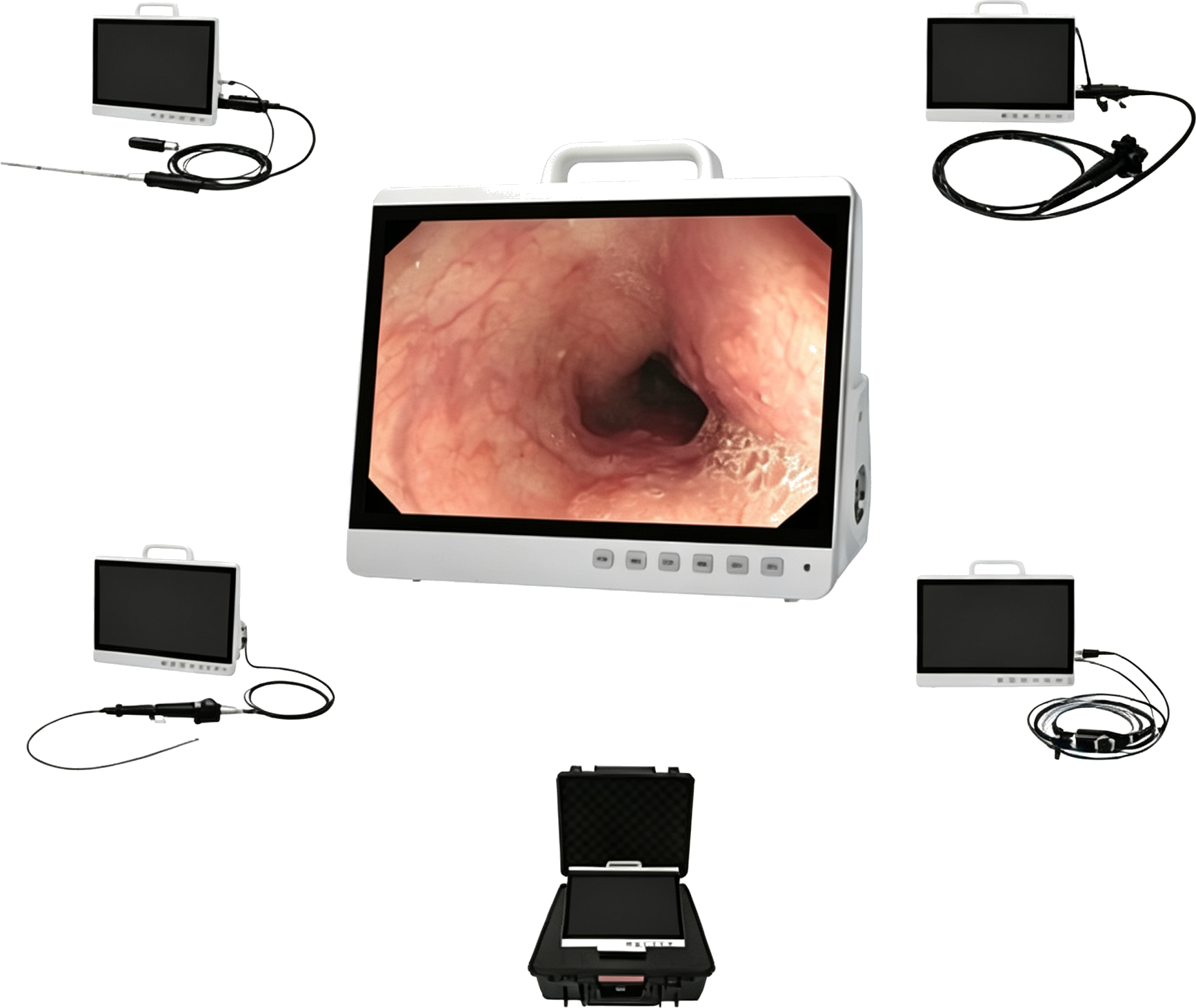

Universal Compatibility & Smart Workstation Software
Designed for ultimate flexibility, the VDS-320 interfaces seamlessly with a wide variety of rigid and flexible endoscopes. The integrated workstation software allows users to create comprehensive case reports on the spot, complete with images and notes, and output them directly to a printer for efficient record-keeping and referral.
All-in-One Integrated Portability
Featuring a built-in 80W LED cold light source (20,000H lifespan) and an integrated air pump, the VDS-320 eliminates the need for bulky external light boxes. Its compact design (370*264*126mm) and sturdy handle make it exceptionally portable for house calls, livestock pens, and multi-room laboratory use.
Features of VDS-320
- Tilted 15.6-inch large capacitive touchscreen with intuitive UI for easy operation.
- 1080P FHD video output with one-click snapshot and recording functions.
- RGB color adjustment (-50 ~ +50) and manual Brightness/Saturation/Contrast control (0-255) for optimal visualization.
- Universal interface compatible with various brands of rigid endoscopes and flexible fiberscopes.
- Built-in powerful 80W LED cold light source with a long lifespan of 20,000 hours.
- Integrated air pump (0.06MPa, 9L/MIN) for insufflation during complex procedures.
- Multilingual system support (Chinese, English, Portuguese, Spanish, Russian, French) for global users.
- Creates and prints detailed case reports via the proprietary workstation software.
Technical Specifications
| Display & Image System | |
| Monitor | 15.6 inch touchscreen |
| Color adjustment | RGB -50~+50 |
| White Balance | Automatic |
| Image Adjustment | Brightness/Saturation/Contrast, 0~255 |
| Image Output | 1080P, with snap & record |
| Light Source & Air Pump | |
| Cold light source | LED-80W, 20000H |
| Pressure / Air Flow | 0.06MPa, 9L/MIN |
| General Parameters | |
| Voltage | ~100-240V, 50Hz/60Hz |
| Dimensions / Net Weight | 370*264*126mm / 6.9KG |
| Language | Chinese, English, Portuguese, Spanish, Russian, French |
Clinical Applications
Livestock Ranches
Veterinary Clinics
Research Laboratories
