Model No: PM6800
PM6800 15-INCH PATIENT MONITOR
The PM6800 patient monitor is the leading choice in multi-parameter monitoring. With its large, easy to read display and intuitive design. The standard parameters includes 5/3 leads electrocardiography(ECG), non-invasive blood pressure(NIBP), pulse oximetry (SpO2),Respiration Rate(RR), temperature(TEMP). Optional parameters includes ETCO2, 2 invasive blood pressure and an integrated printer.
2 years warranty.
2 years warranty.
minimum order :
1 unit
Supply Ability :
2000unit / Month
Stock Time :
3Day
Quantity :
Description
Bring an Easy Way to Monitoring
Patient monitoring should be more equitable and inclusive. Based on 16-year experience of UTECH patient monitoring, PM series patient monitors, precise target to primary clinical demands, ensure high quality, durability, and accuracy affordably.
Elevate operation experience and performance on the premise of cost control.
Elevate operation experience and performance on the premise of cost control.

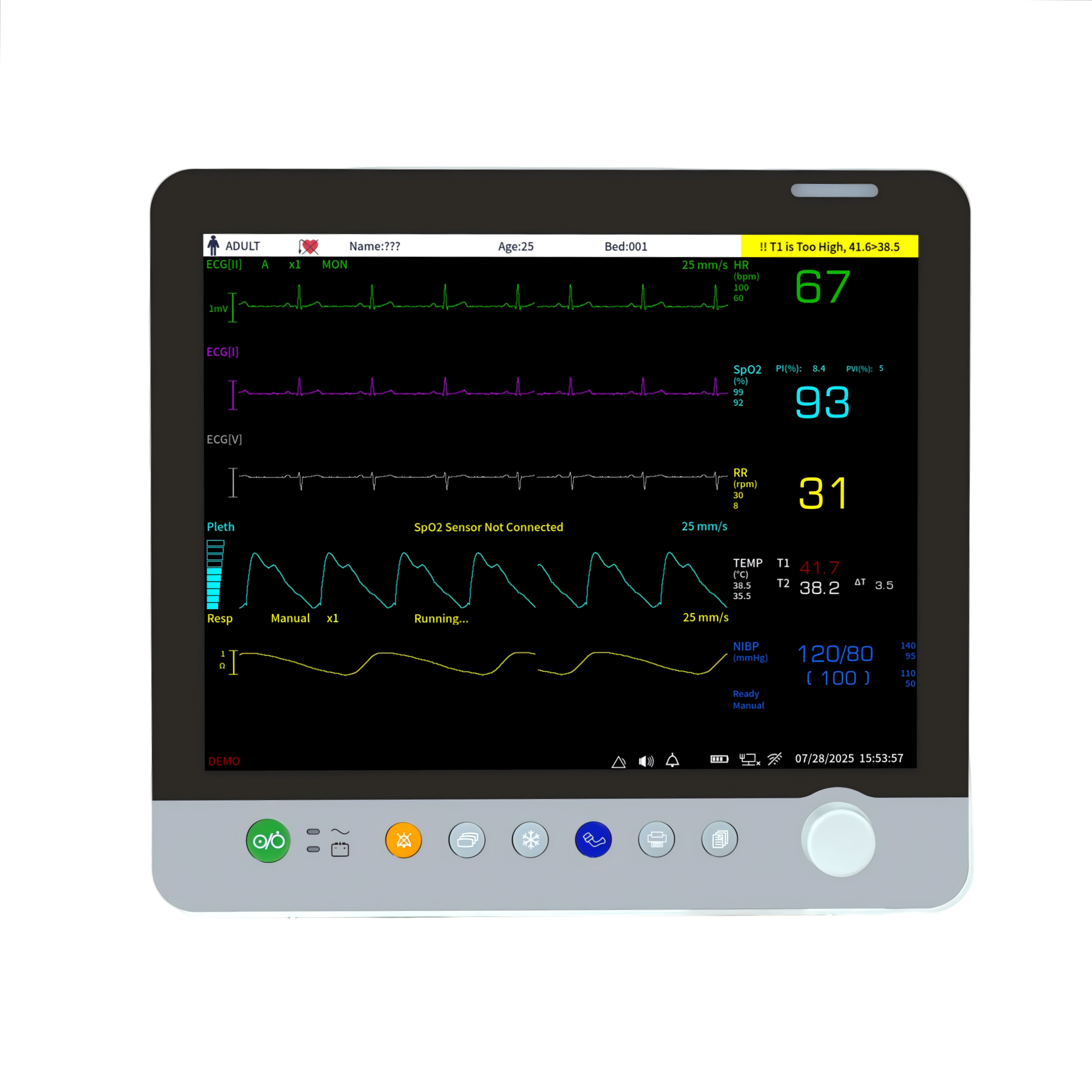

Customizable Parameters
This PM6800 15-inch patient monitor excels in high-acuity environments like ORs and ICUs.
Its key strength is customizable parameter configuration, allowing for the addition of critical modules such as IBP, ETCO2, and AG.
Its key strength is customizable parameter configuration, allowing for the addition of critical modules such as IBP, ETCO2, and AG.
This flexibility delivers comprehensive patient data, empowering clinicians with the precise insights needed for complex surgeries and intensive care.

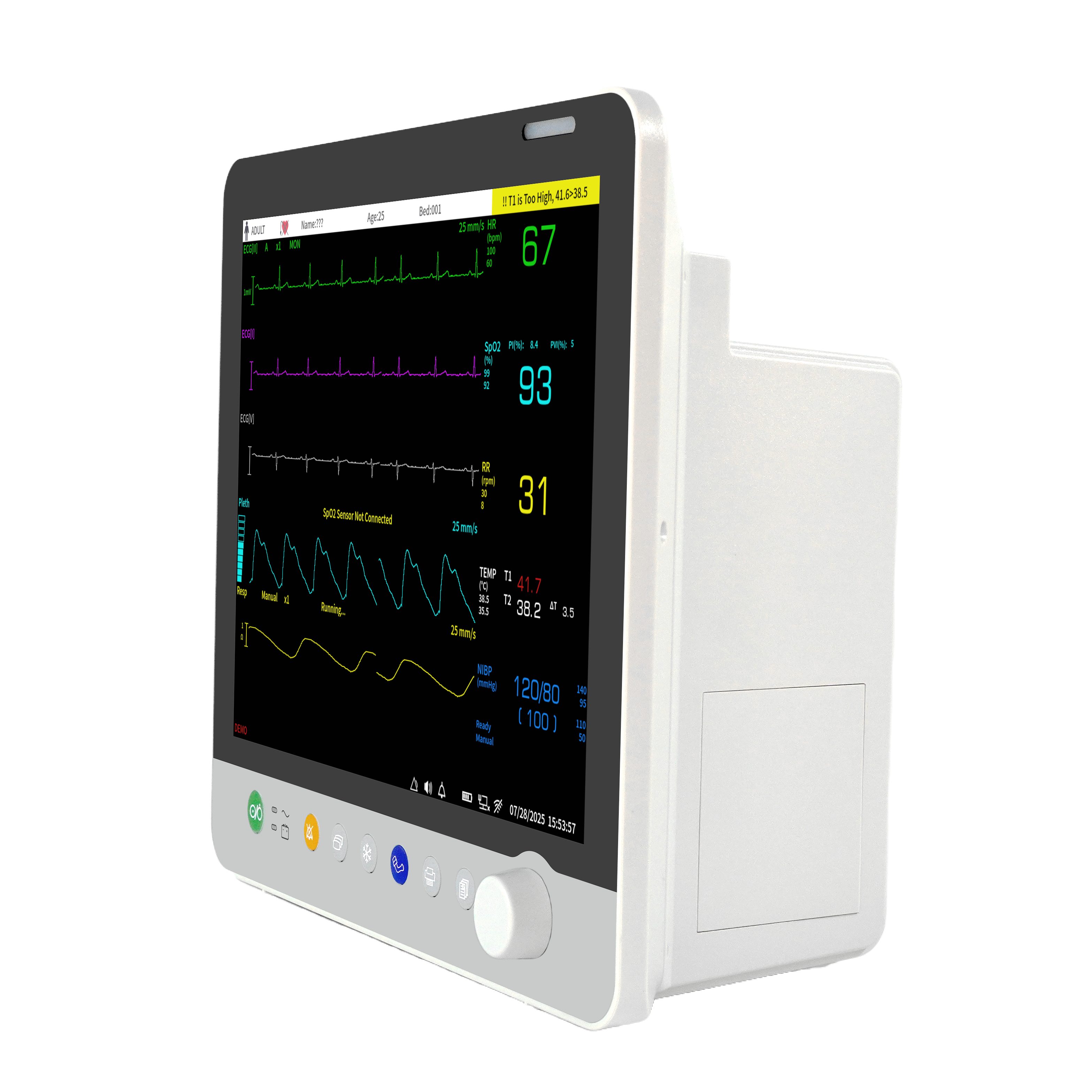

High-Definition Clinical Visualization
The expansive high-resolution screen delivers unparalleled visual precision.
It showcases critical waveforms and data in sharp detail enabling faster, more accurate assessment of subtle patient trends and vital signs.
It showcases critical waveforms and data in sharp detail enabling faster, more accurate assessment of subtle patient trends and vital signs.
Central Monitoring Compatible
The PM6800 is equipped with advanced connectivity options, allowing it to be seamlessly integrated into a Central Monitoring System.
This enables the real-time wireless transmission of patient data, facilitating streamlined data management.
This enables the real-time wireless transmission of patient data, facilitating streamlined data management.
Features of Patient Monitor
- The 15-inch screen features high-tech white and black.
- The integrated module design ensures the safety, stability, and reliability of the product.
- Connect with the central monitoring system for remote and wireless monitoring.
- The printer supports the print of 3 Channel waveforms.
- The dexterous handle makes it convenient for medical staff to carry.
Specifications
| Display |
| LCD, 15 inch diagonal high-resolution TFT (Thin Film Transistor) Active Matrix LCD Resolution, 1024 X 768 pixels |
| SpO2 |
| Range, 0-100% Functional Saturation Accuracy, ± 2 bpm or ± 2% of reading (whichever is greater) Resolution, 1 % Pulse Rate Range, 20 bpm to 350 bpm Pulse Rate Accuracy, ± 2 bpm or ± 2% (whichever is greater) Resolution, 1 bpm |
| ECG |
| Lead Set, 3-lead: I, II, III 5-lead: I, II, III, V, aVR, aVL, aVF 12-lead: I, II, III, V1, V,2 V3, V4, V5,V6, aVR, aVL, aVF HR range, 20-350 bpm Heart Rate Accuracy, ±2 bpm or ±2% (whichever is greater) Resolution, 1 bpm Gain Selection, X 1/4, X1/2, X1, X2, X4,auto Sweep Speed, 6.25 mm/s; 12.5 mm/s; 25mm/s; 50 mm/s |
| NIBP |
| Method of Measurement, Oscillometric with step-down deflation Range Systolic: (40 to 270) mmHg; Mean Arterial: (30 to 220) mmHg, Diastolic: (20 to 200) mmHg Units of Measure, mmHg, kPa(user-select able) Resolution, 1 mmHg Measurement Time, 30 s to 50 s typical, 120 s maximum Default Inflation Pressure, 165 mmHg - Adult 145 mmHg - Pediatric 90 mmHg - Neonate Cuff pressure rating, (0 to 300) mmHg Over pressure protection, Adult: 297±3 mmHg Pediatric: 297±3 mmHg Neonate: 147±3 mmHg |
| TEMP |
| Standards, (ISO 80601-2-56) Method, Thermal resistance Channel, Two channel Range, 0℃ to 50℃ / 32℉ to 122 ℉ Accuracy, ± 0.2 ℃ plus the temperature sensor tolerance Resolution, 0.1 ℃, 0.1℉ TEMP Alarm Range, High: 35.5 ℃ to 43.5 ℃ and OFF in 0.1 Increments; Low: 35.5 ℃ to 43.5 ℃ and OFF in 0.1 Increments |
| CO2 (Optional) |
| Mode of Sampling, Main stream Sample Flow Rate, Range: (50 to 150) ml/min Accuracy: ±20%; Default: 75 ml/min Principle of Operation, Non-dispersive infrared, dual Wavelength, no moving parts. Initialization Time, Capnogram displayed in less than 4 seconds, At an ambient temperature of 25℃, full specifications within 5 minutes. CO2 Measurement Range, (0 to 114)mmHg, (0 to 15)% , (0 to 15.2 )kPa CO2 Response Time, Includes transport time and rise time Less than 2 seconds，at 150ml/min sampling flow Less than 3 seconds，at 100ml/min sampling flow Less than 4 seconds, at 50ml/min sampling flow CO2 Resolution, 0.1 mmHg CO2 Accuracy, (0 to 40) mmHg ±2 mmHg (41 to 70) mmHg ±5% of reading (71 to 114) mmHg ±10% of reading Above 80 breaths per minute ±12 % of reading * Note: Gas temperature at 25 ℃ CO2 Stability, Short Term Drift: Drift over three hours shall not exceed 1 mmHg maximum.Long Term Drift: Accuracy specification will be maintained over a six hour period Sampling Rate, 100 Hz Respiration Rate Range, (4 to 150) breaths per minute Respiration Rate Accuracy, ±1 rpm Calibration, No routine user calibration required. |
| Respiration |
| Range，0 to 120rpm Accuracy，±1 rpm Resolution，1 rpm RESP Alarm Rang，High: 0 rpm to 120 rpm , and OFF Low: 0 rpm to 120 rpm , and OFF Lead，Lead Ⅱ |
| Environmental |
| Temperature，(0 to 50) ℃ (Operating) (-20 to +55) ℃ (Storage and Transport) Humidity，15% to 95% (Operation) 10% to 95% (Storage and Transport) Barometric Pressure，(70 to 106) kPa (Operation , Storage and Transport) |
| Power Requirement |
| AC Input, (100 to 240)V a.c., 50/60 Hz, 60VA, FUSE T1.5A Rechargeable battery, 11.1V, 4.4mAh |
Clinical Applications
ICU
Operation Room
CCU
