Model NO.:
DM82
Price:
USD 1.00-1.00 / pieces
Delivery:
FOB
Minimum order quantity:
10 pieces
Country of Origin:
Chongqing
Quantity:

Features:

  • Model Number:DM82
  • Brand Name:OneOXI

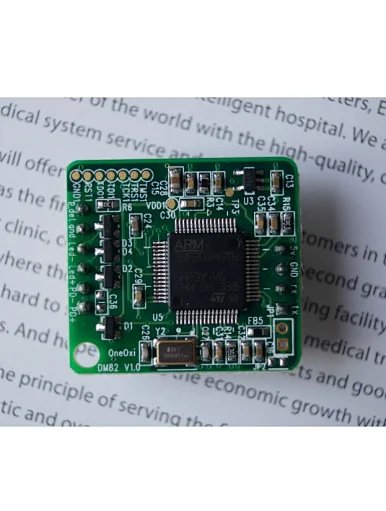

  • Commodity:DM82 SpO2 Board
  • Dimensions:30.0 x 27.5 x 11.0 mm
  • Sensors:Designed to use UTECH sensors only (see Accessories)
  • Operating Temperature:5°C to +50°C
  • Dissipation Power:0.5-1.2 W
  • Supply Voltage:5V

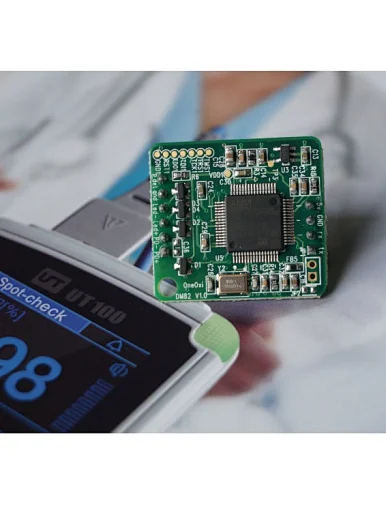

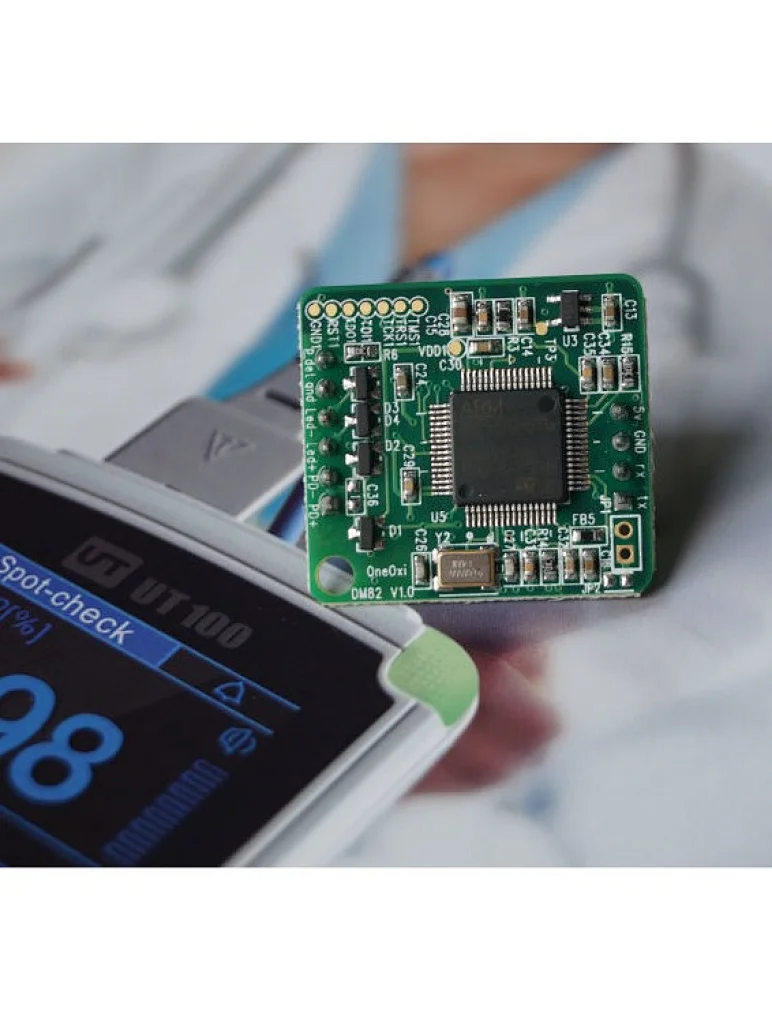

  • Application:Pulse Oximeter

OEM One-OXI Specifications:

1.Displayed Oxygen Saturation Range (SpO2) 0 to 100%

2.Displayed Pulse Rate Range 25 to 250 beats per minute (BPM)

3. Measurement Wavelengths and Output Power Red: 660 nanometers @ 0.8 mW maximum average

Infrared: 905 nanometers @ 1.2 mW maximum average (using UTECH Sensor)

4. SpO2 Accuracy (Arms*) 70-100%

Adults/Pediatrics Neonates

No Motion

± 2 digits ± 3 digits

Motion

± 3 digits ± 4 digits

Low Perfusion ± 2 digits ± 3 digits

5. Pulse Rate Accuracy

No Motion

± 2 digits ± 3 digits

Motion

± 3 digits ± 4 digits

Low Perfusion ± 2 digits ± 3 digits

6.Temperature (Operating) Specified operating temperature is for the module 0°C to +50°C (32°F – 122°F)

Operating temperature of Sensor is not to exceed 40°C (104°F)

Temperature (Storage/Transportation) -20°C to +70°C (-4°F - +158°F)

7. Humidity (Operating) Humidity (Storage/Transportation) 10 to 90% non-condensing

8.Power Draw 500 mW typical operation @ 5.0VDC input voltage

9. Voltage Input +5.0VDC ±0.25VDC

10.I/O Signals 0 to +5.0VDC (nominal) @ +5.0VDC input voltage

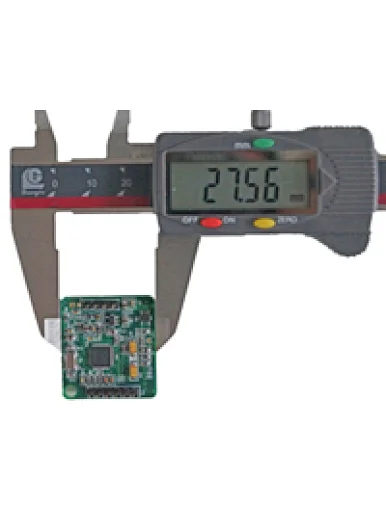

11.Dimensions 27.5 x 27.5 x 10.0 mm

12.Weight 5.3g (0.19 oz.) (with shield)

13. Sensors Designed to use UTECH sensors only (see Accessories)
