Description
Precise & reliable for safer IV therapy.

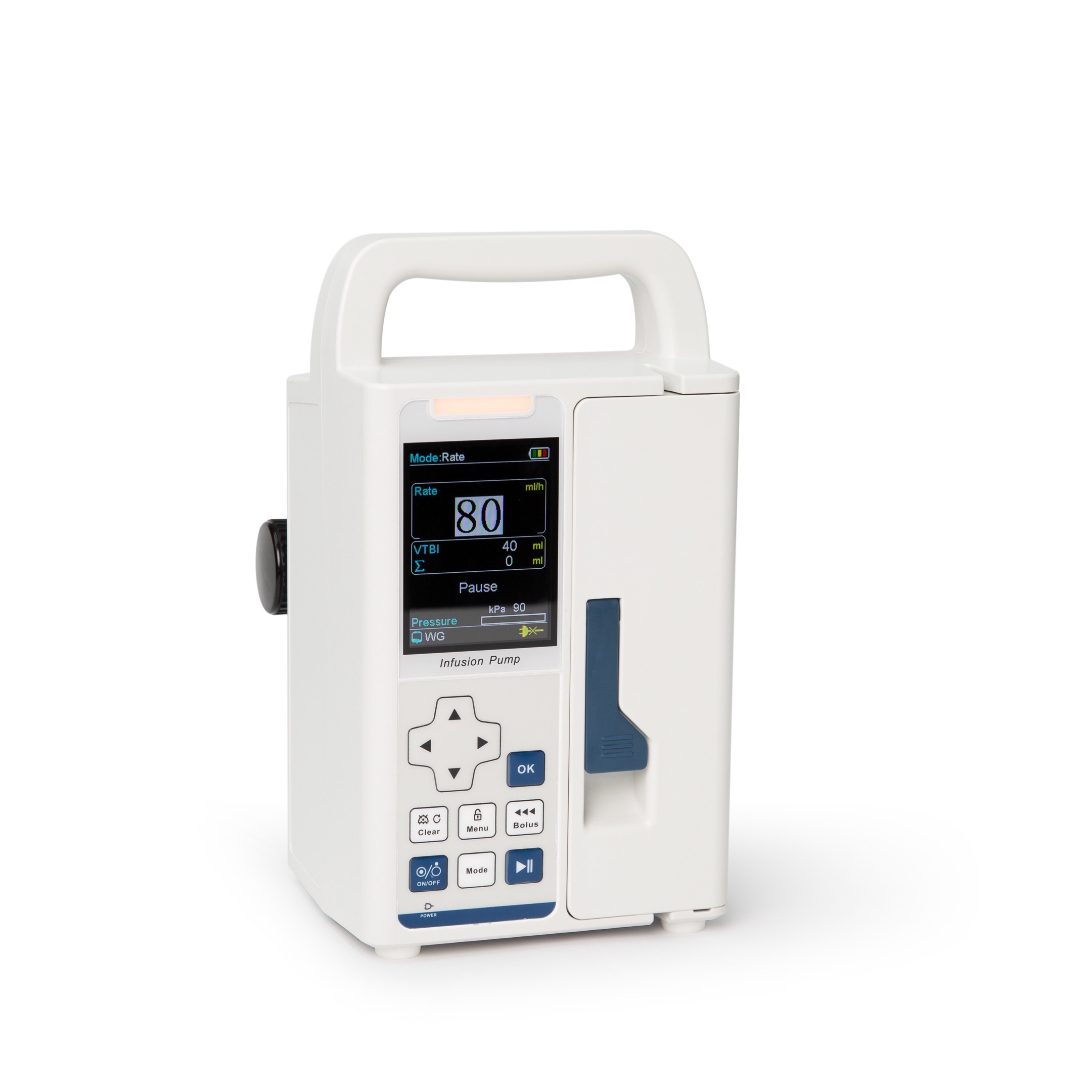

The IP300 infusion pump delivers ±2% infusion accuracy, with DPS dynamic pressure display, bolus lockout and 11 alarms for safe, stable, controllable infusion. Its large 10‑level adjustable TFT color screen clearly shows status, rate and cumulative volume for easy operation.
Flexible, intelligent multi-modal drug delivery
This device offers multiple infusion modes (rate, dose/volume/individual dose/body weight). Bolus can be set manually or via automatic programming. Flow rate: 1.0–1200 ml/h; infusion volume: 1.0–100 ml. After calibration, it works with all brands of infusion tubing and supports KVO rate and programmable emptying rate to satisfy varied clinical medication needs.
Comprehensive alerting,safeguarding your safety
The system features 11 types of alarms—including bubble detection, blockage, liquid drainage, and battery depletion—with alarm sound levels available in three tiers: low, medium, and high.
The DPS dynamic pressure blockage alarm offers three selectable pressure thresholds, enabling real‑time monitoring of pipeline status to safeguard patient infusion safety.
Portable and durable—ready to use anywhere.
The device weighs only 1.7 kg, and its bidirectional mounting clips support both vertical and horizontal fixation, allowing it to be mounted on infusion stands or bed railings.
Its built‑in lithium battery provides approximately 12 hours of runtime, making it suitable for diverse use cases such as in hospital wards, patient transport, and home care settings.
Features
- Large‑format color TFT display with adjustable brightness from level 1 to 10
- Manual/automatic bolus dosing, with programmable and adjustable rate and volume settings
- The DPS dynamically displays pressure, with adjustable blockage pressure settings at low, medium, and high levels.
- Anti‑Bolus system to ensure medication safety
- After precise calibration, it is compatible with infusion tubing of any brand.
- Storage of 2,000 historical events, with on‑site viewing and download capabilities.
- Vertical and horizontal dual‑direction mounting clips, compatible with a wide range of mounting scenarios.
- RS‑232 data communication interface, facilitating data integration
- Equipped with a built‑in lithium battery, supporting up to approximately 12 hours of continuous operation.
- 11 types of comprehensive alarms, with three adjustable alarm volume levels.
Specifications
| Compatible with infusion tubing | After precise calibration, it is compatible with infusion tubing of any brand. |
| Infusion accuracy | ±2% |
| Flow rate range | 0.1–1200 ml/h (0.1 ml increments) |
| Infusion duration range | 00:01:00 – 99:59:59 (1‑minute increment) |
| Maximum capacity range | 0.0–9999 ml (1 ml increments) |
| Cumulative infusion volume range | 0.0–9999 ml (1 ml increments) |
| KVO speed | 0.0–5.0 ml/h, programmable and adjustable |
| Emptying rate | Programmable and adjustable |
| Volume | 0.1–999.9 ml (0.1 ml increments) |
| dose | 0.1–999.9 mg (in 0.1 mg increments) |
| dosage | 0.001–9,999 µg/kg/min (step size: 0.001 µg/kg/min) |
| weight | 0.1–300 kg (0.1 kg increments) |
| Drug repository model | selectable |
| Sequential infusion mode | selectable |
| Bolus speed | 1.0 ~ 1200 ml/h |
| Bolus capacity | 1.0 ~ 100 ml |
| pattern | Automatic/Manual, programmable and adjustable |
| low‑end | 60 ± 15 kPa |
| Mid‑range | 90 ± 15 kPa |
| top grade | 120 ± 15 kPa (adjustable) |
| Alarm Type | Abnormal rate, door open, air bubble, blockage, liquid drainage, battery depleted, no battery, key held during infusion/pause, infusion complete, no operation, low battery level |
| Alarm volume | Adjustable: low / medium / high |
| display screen | Large‑format color TFT display |
| luminance | Adjustable from level 1 to 10 |
| communication interface | RS‑232 |
| history | 2,000 events are available for viewing and downloading. |
| alternating current power supply | AC 100 ~ 240 V（±10%），50/60 Hz |
| direct‑current main | DC 12–15 V, power> 15 W |
| Built‑in lithium battery | Rechargeable, 11.1 V, 2000 mAh, up to approximately 12 hours of continuous operation |
| levels of protection | Class I，Type CF，IPX4 |
| Dimensions / Net Weight | 120 × 100 × 215 mm，1.7 kg |
| Packaging dimensions / gross weight | 250 × 190 × 155 mm，2.5 kg |
Clinical Applications
