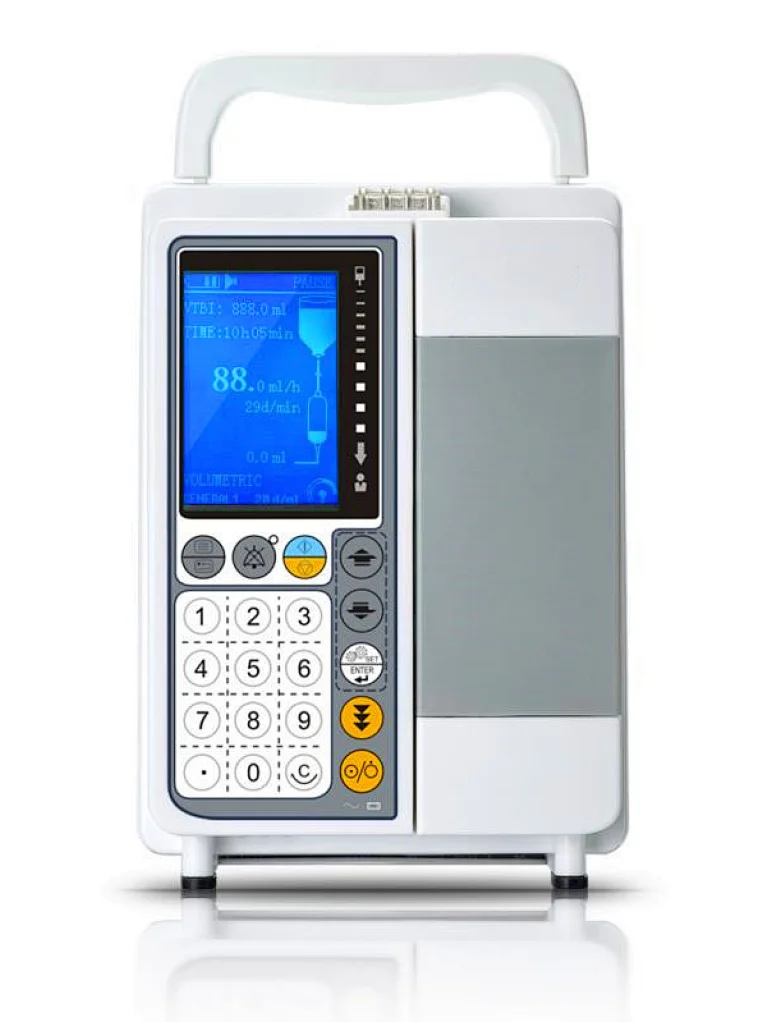

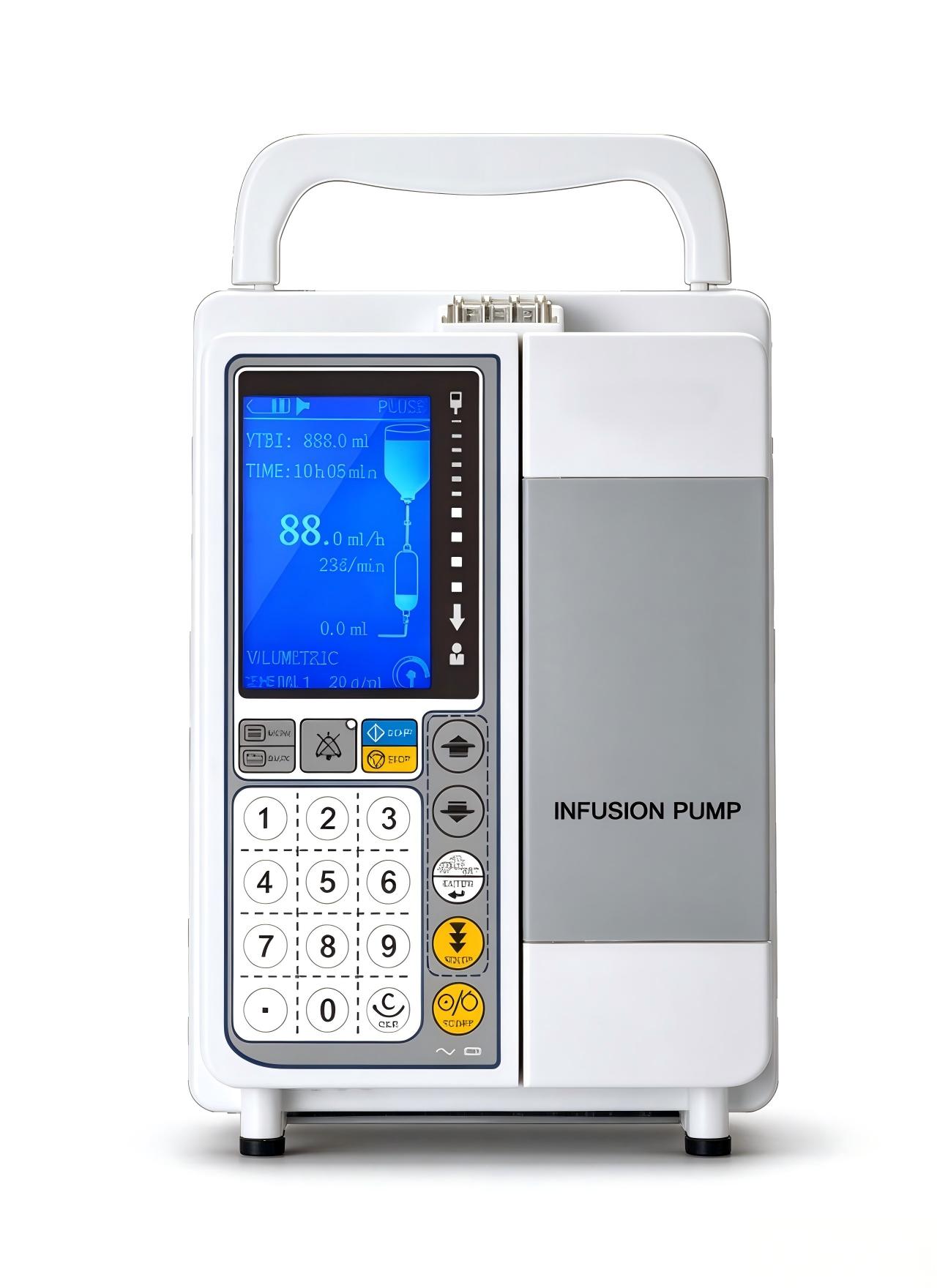

UT-710 Infusion Pump

Veterinary infusion pump is with the classic vertical design. The software compensation error is within±5% after calibration. Adjustable
level setting and occlusion pressure release function is make it commonly acceptable by the veterinary hospital. Double CPU and numeric
keypad make it safe and more user friendly.

Country of Origin :

China

Quantity :

Buy Now

add to cart

Contact Now

Description

Safer & Precise Infusion

The UT‑710 is a smart medical infusion pump adopting dual‑CPU architecture to deliver safe and high‑precision liquid medication.

Equipped with multiple working modes and comprehensive alarm mechanisms, it simplifies clinical operations and mitigates infusion‑related risks for healthcare providers.

Reliable Dual‑CPU Safety Mechanism

Dual‑CPU architecture provides redundant monitoring throughout the infusion procedure.
Dual occlusion detector for timely pipeline blockage identification.
Multi‑level audio‑visual alarm system for real‑time risk notification.

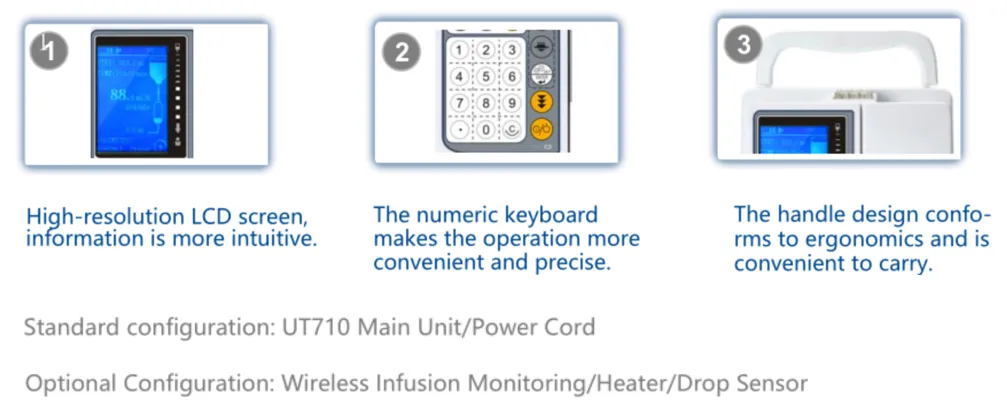

User‑centered Human‑machine Interaction

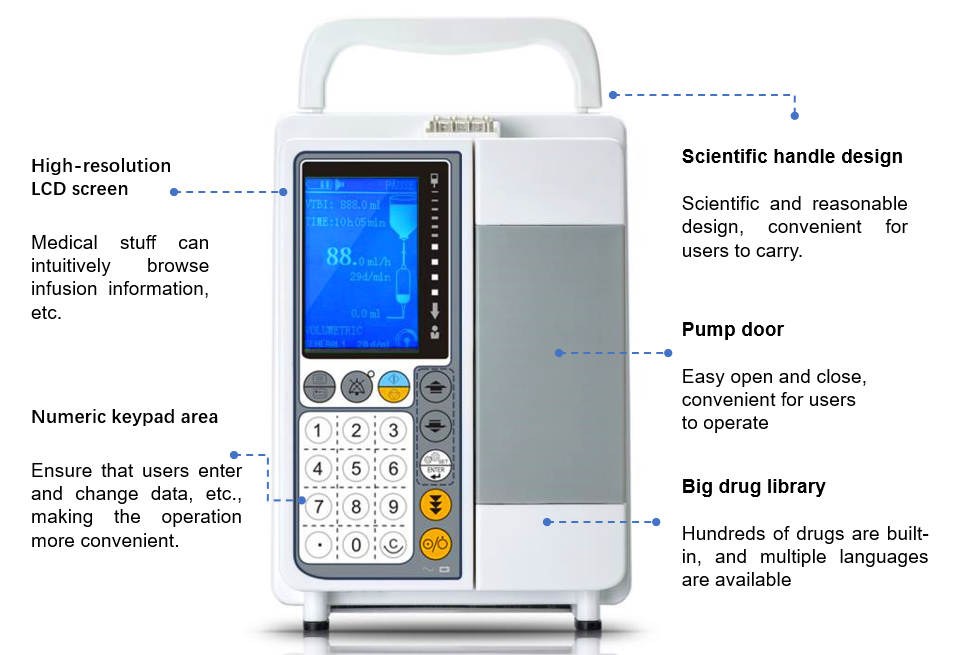

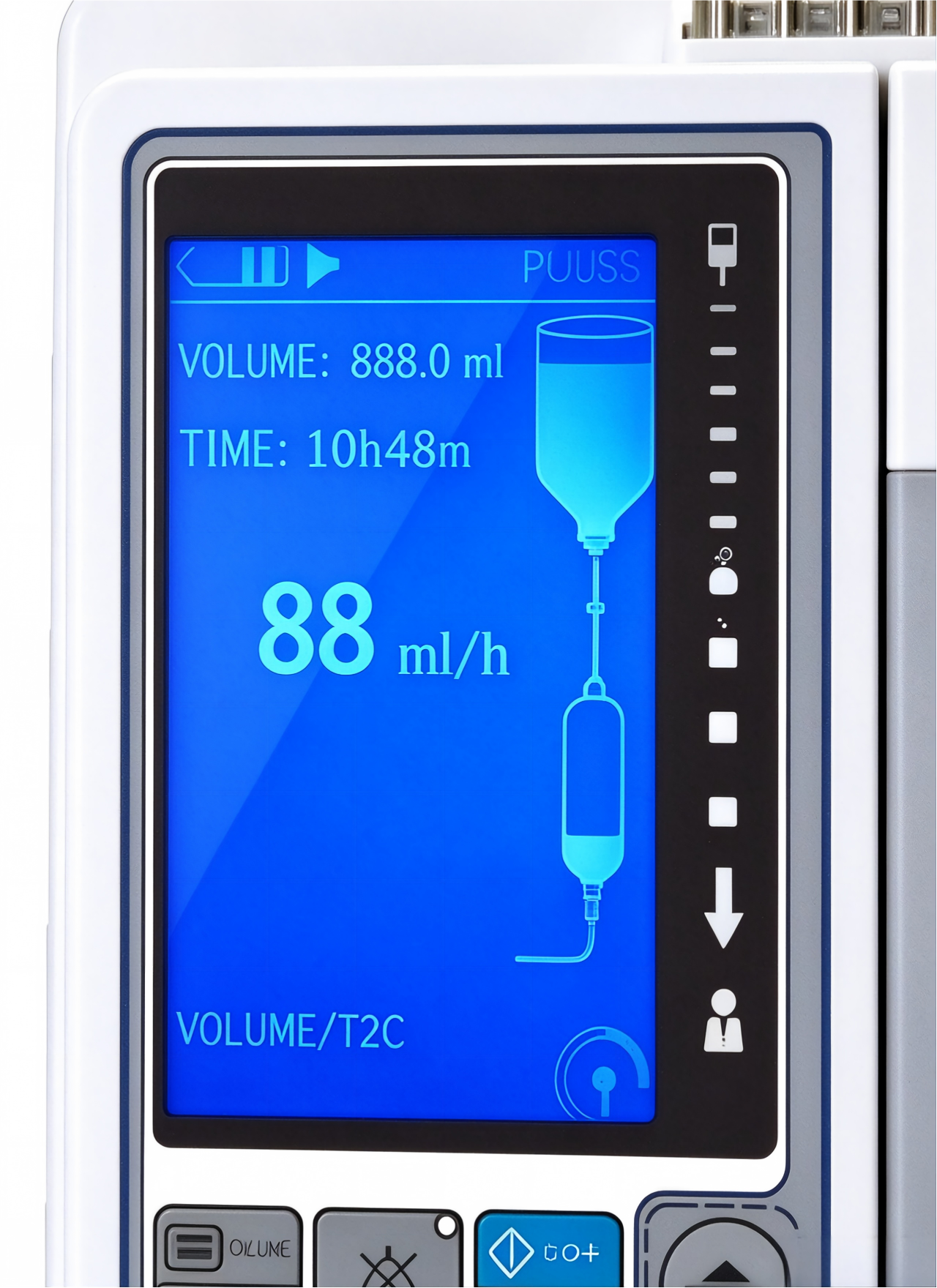

It features a high‑brightness 3.2‑inch LCD screen and full numeric keypad for fast parameter input and real‑time infusion data visualization.

Night mode dims the screen automatically during idle periods to reduce light disturbance for night‑shift ward care.

Long‑lasting Portable Infusion Solution

The built‑in 3000mAh lithium‑ion backup battery ensures continuous operation for no less than 10 hours.

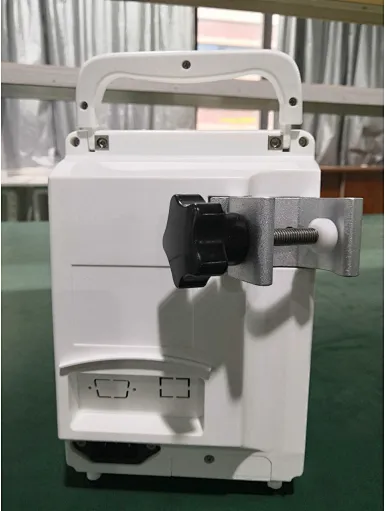

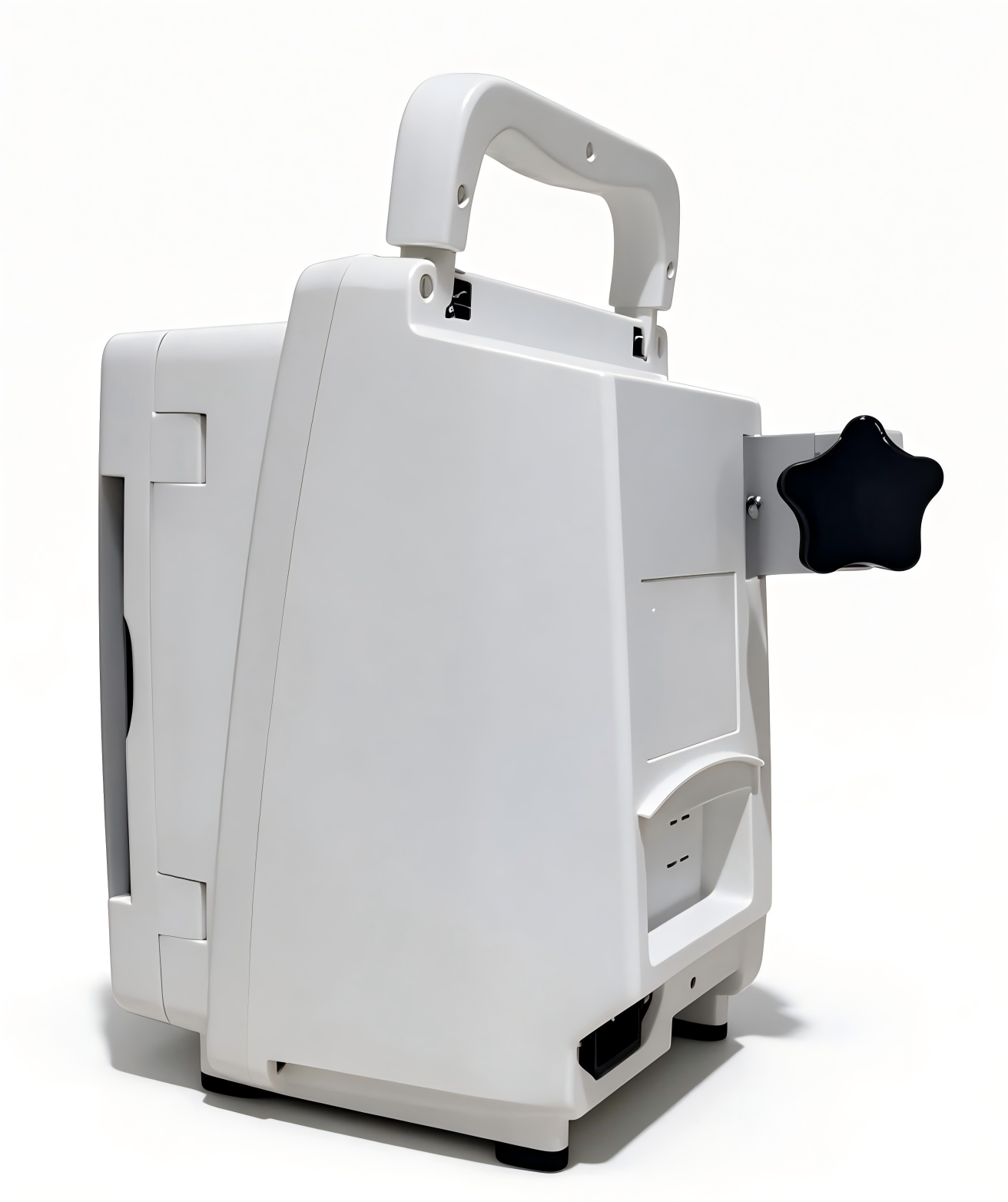

An integrated carry handle enables convenient device relocation across care sites. It works with various calibrated open‑system IV sets.

Features of Infusion Pump

Dual‑CPU redundant architecture improves overall infusion safety.
3.2‑inch high‑brightness LCD for clear data readout.
Full numeric keypad supports rapid and accurate parameter configuration.
Dual occlusion detector; occlusion pressure ranges from 40‑140KPa with 0‑9 adjustable levels and dynamic pressure display.
Multiple working modes: Volume Mode, Time Mode, Drug Mode, Night Mode, Bolus Mode.
Bolus function with adjustable bolus flow rate.
Audio‑visual alarms for occlusion, air‑in‑line and low‑battery conditions; alarm volume with 10‑level settings.
3000mAh rechargeable lithium‑ion battery offering ≥10‑hour backup runtime.
Automatic self‑testing at startup and during infusion process.
Compatible with diverse open‑system IV sets after calibration.
Compact portable design with integrated carry handle.

Specifications

Display

Item	Parameter
Screen	3.2‑inch high‑brightness LCD

Infusion Performance

Item	Parameter
Working Modes	Volume Mode, Time Mode, Drug Mode, Night Mode, Bolus Mode
Flow Rate Accuracy	≤ ±5% (after calibration)
VTBI Range	0.1‑9999.9 ml
Maximum Flow Rate	600 ml/h, purge volume display supported
Bolus Function	Available with adjustable bolus flow rate
Occlusion Pressure	40‑140 KPa, 0‑9 adjustable levels, dynamic pressure value display
Infusion Set Type	Open system, compatible with various IV sets after calibration

Alarm & Self‑diagnosis

Item	Parameter
Alarm Types	Occlusion, Air‑in‑line, low battery, system fault; audio‑visual alarm with 10‑level volume
Self‑test	Automatic self‑test on startup and during infusion

Power Requirement

Item	Parameter
AC Input	100‑240 V~, 50/60 Hz, ≤25 VA
Backup Battery	3000 mAh rechargeable lithium‑ion battery, runtime ≥10 hours

Environmental

Item	Parameter
Operating Temperature	5℃‑40℃
Operating Humidity	20%‑90% RH
Operating Atmospheric Pressure	700‑106 KPa
Storage Temperature	-20℃‑55℃
Storage Humidity	10%‑90% RH
