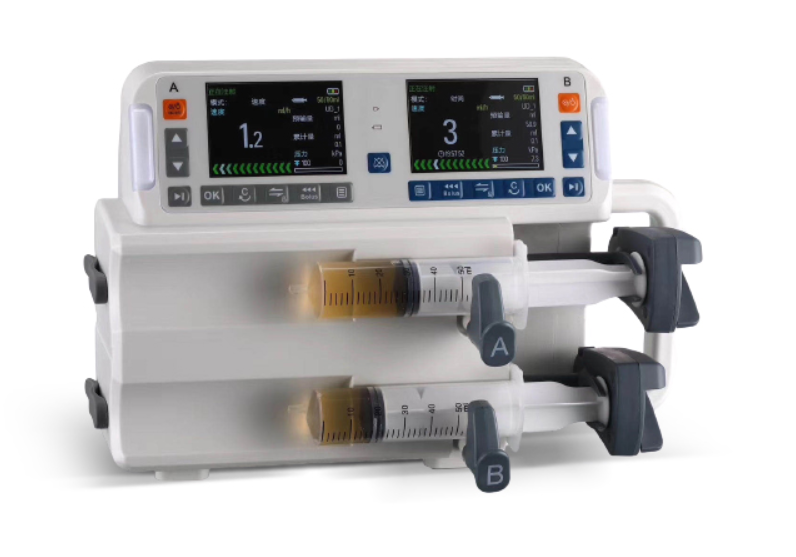

SP320 Dual Channel Syringe Pump
SP320
1 piece
China
The SP320 dual‑channel syringe pump manufactured by Changsha Deepmed Medical is a medical dual‑channel infusion device. It supports multiple infusion modes including rate, time and dose modes, compatible with syringes of 5‑60 mL with high infusion accuracy. It features bolus injection, KVO function, occlusion protection and online linkage. Equipped with complete multi‑level audio‑visual alarms and a built‑in backup lithium‑ion battery, it supports custom syringe calibration for accurate continuous clinical medication infusion in hospitals.
Quantity
Description

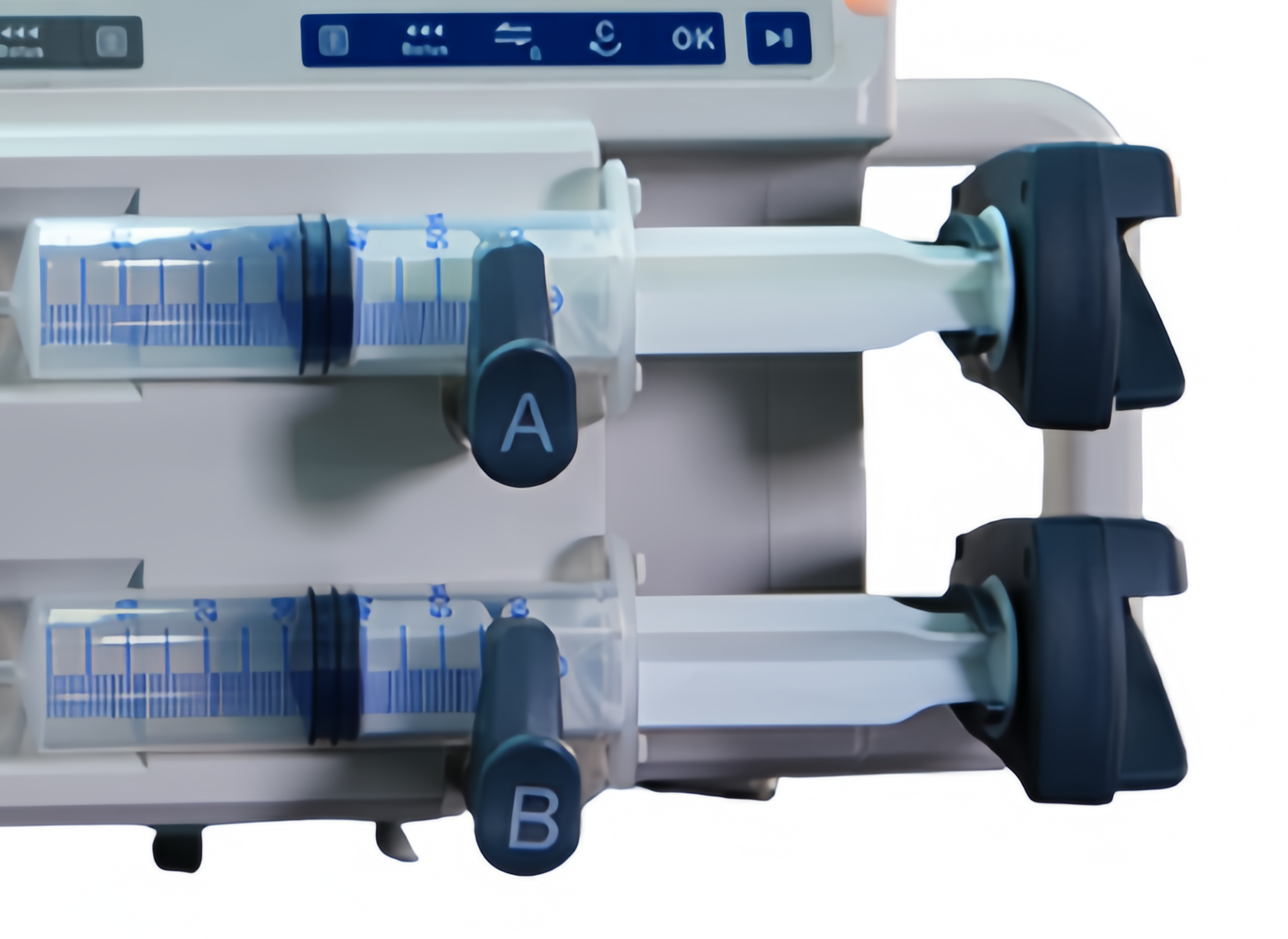

Dual‑Channel Independent Infusion
The SP320 features two fully independent A/B channels supporting online cyclic operation for simultaneous or time‑shared precise drug delivery.
Equipped with an adjustable‑brightness color TFT screen, it delivers intuitive operation while ensuring clinical flexibility and medication safety.
Anti‑Bolus Safety Protection
- Integrated anti‑bolus system prevents accidental drug over‑delivery
- DPS real‑time occlusion pressure display for pipeline blockage monitoring
- Eliminates sudden drug surge risks to protect critically ill patients
Reliable Data Traceability
The pump stores up to 2000 event records for review and export to fulfill clinical traceability requirements.
The built‑in rechargeable backup lithium battery sustains continuous infusion in case of power loss, avoiding treatment interruption.
Flexible Installation & Bolus Function
It comes with vertical and horizontal mounting clamps for diversified installation scenarios.
Manual and automatic bolus functions support rapid clinical dosing, balancing portability and versatile clinical deployment.
Features of SP320
- Manual & Automatic Bolus function available for rapid medication delivery
- Vertical and horizontal dual‑mode mounting clamp for diverse installation requirements
- Built‑in anti‑bolus system to prevent accidental drug over‑delivery
- DPS occlusion pressure real‑time display for pipeline blockage monitoring
- 2000 events historical data storage, support query and data download
- Large‑size color TFT display with adjustable screen brightness
- Two fully independent working channels, support Online cyclic repeated operation for A/B channel
- Multiple‑level occlusion pressure adjustable (25‑level setting; 4 preset quick‑setup levels)
- Class I, Type CF safety classification, IP44 protection grade
- Built‑in rechargeable lithium battery for emergency continuous infusion
Specifications
Power Supply
| AC Power | AC 100‑240V(±10%),50/60Hz |
| DC Power | 12‑15V, Power＞15W |
| Built‑in Lithium Battery | 11.1V, 2600mAh, up to 8 hours continuous operation |
Safety & Enclosure
| Safety Rating | Class I, Type CF, IP44 |
| Occlusion Pressure Levels | 25 customizable levels, 4 quick preset levels |
| Overall Dimension | 350*150*220mm |
| Net Weight | 4KG |
| Outer Package Dimension | 380*230*260mm |
| Gross Weight | 4.5KG |
Core Function
| Historical Storage | Stores 2000 events, supports viewing and download |
| Channel Mode | Independent operation of A and B channels; supports Online cyclic repeated operation |
| Display | Color TFT display with adjustable brightness |
| Core Functions | Anti‑bolus system, DPS occlusion pressure display; manual/automatic bolus; vertical/horizontal mounting clamps |
Clinical Applications
Hospitals Clinic Emergency & Transfer
