  • Instrument classification:Class II
  • Warranty:1 YEAR
  • After-sale Service:Free spare parts
  • Place of Origin:CN;CHO
  • Brand Name:UTECH
  • Model Number:UT-1020
  • Type:Breathing Apparatus
  • Product name:Adult and Pediatric Medical Breathing Anesthesia Ventilator
  • Application:hospitals and clinics
  • Patient's type:Adult, Pediatric, Neonate
  • Certificate:CE, ISO13485
  • Warranty:1 year
  • Dimension:L43cm*W38cm*H49cm
  • Weight:10KGS
Product Description

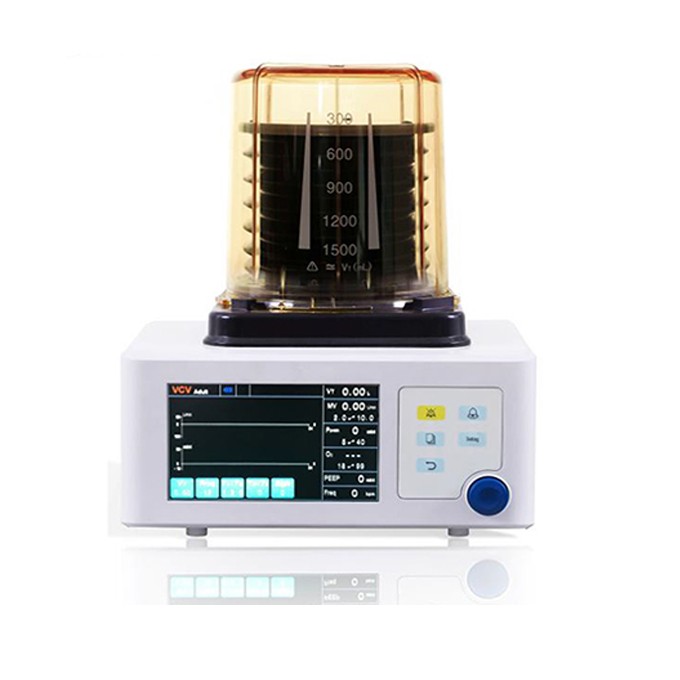

ventilator anesthesia
The UT-1010 provides the physician with a flexible, simple and easy to use ventilator for closed circuit and SEMI-close circuit. All the selected patient parameters are clearly visible on large, bright LCD displays. The audio-visual alarm system contains improved alarm features - including alarm mute. The UT-1010 is an advanced, easy to use anesthesia ventilator
Features

1. 7 inch TFT display screen
2. Good air tightness, high reliability
3. Applied for adult and pediatric
4. Microprocessor controlled, integrated

Techinical Specifications:

Dimensions:
43cm*38cm*49cm
Weight
10KGS
Working type
Electronically controlled, pneumatic driven
Patient type
Pediatric, Adult
Ventilation mode
IPPV, SIMV, MANUAL(BAG)
Tidal volume
20-1500ml
I:E ratio
4:1-1:8
Frequency
Adjustment range
1-100bpm
Under IPPV and Manual mode
4-65bpm
Under SIMV
1-40bpm
Monitoring
VT, MV, BPM, Paw, FiO2, PEEP, Respiratory
Frequency, I:E ratio, Ppeak
Waveform
Pressure-time, Flow-time， F-V loop, P-V loop
Power
AC 220 ±10%, 50 HZ ±2%, built-in battery>
2hrs(rechargeable) 12V
Inspiratory time(TI)(at SIMV)
Adjustment range: 0.2s-6.0s(the limit of I:E
ratio ≤4)
Pressure trigger
-20 cm H2O - +20cm H2O
Pressure limit
Patient airway pressure range
-2KPa-10 KPa
Airway pressure monitoring range
0-10KPa
PEEP
3-20cm H2O
Safety valve pressure limit
≤6KPa
Alarm
High(low) pressure alarm, High(low) MV alarm,AC power lost alarm
Continuous positive airway pressure, Apnea, Self-test failure, Battery low
High(Low) Respiratory Frequency , High(Low) FiO2
Accessories
Oxygen sensor
Silicon tubes(reusable)
Tidal volume sampling sensor
Oxygen high pressure hose
