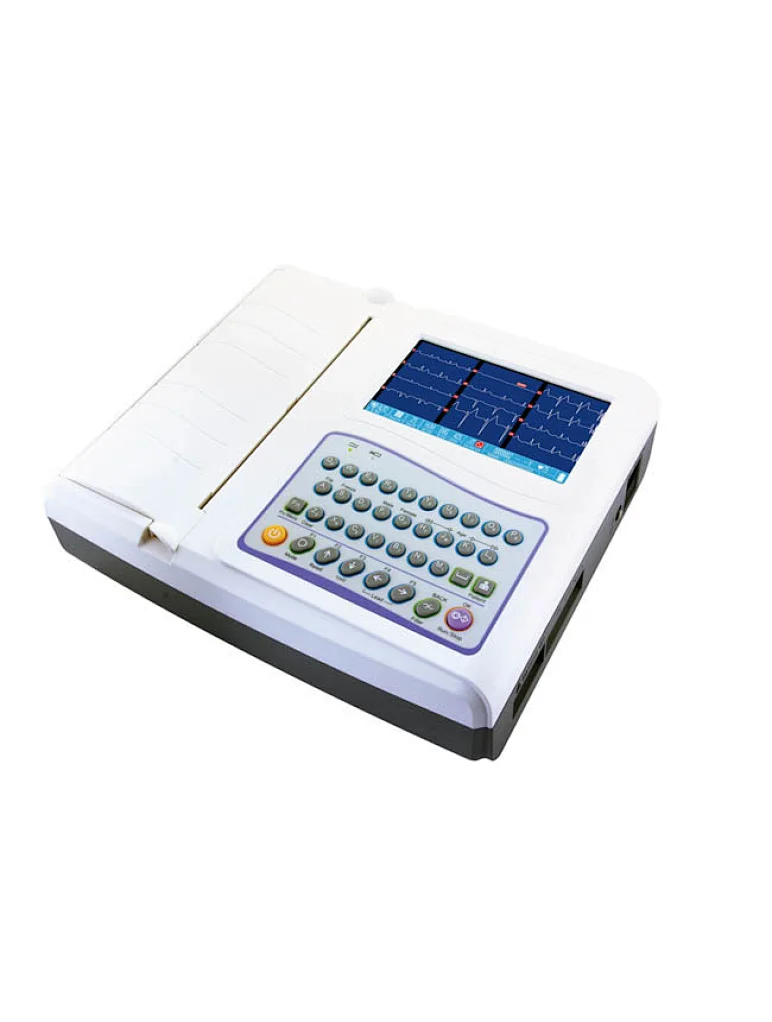

12 Channel Electrocardiograph Machine with 7 inch LCD Display
12 Channel Electrocardiograph Machine with 7 inch LCD Display

12 Channel Electrocardiograph Machine with 7 inch LCD Display

Model NO.
Minimum order quantity:
1 unit
Supply Ability:
5000 unit / Month
Country of Origin:
  • Place of Origin:CN;CHO
  • Model Number:UT-3312B
  • Type:Breathing Apparatus
  • Product name:12 Channel Electrocardiograph Machine with 7 inch LCD Display
  • Application:hospitals and clinics
  • Patient's type:Adult, Pediatric, Neonate
  • Warranty:1 year
  • Dimension:L347mm x W293mm x H83mm
  • Weight:4.8KGS
Product Description

1. Portable and delicate design, very easy and convenient to operate
2. Accurate pulse pace identification function
3. High accuracy digital filter, automatic baseline adjustment
4. Working modes: Manual, Automatic, Arrythmia Analysis, Storage
5. 210mm, 12 channel format recording, excellent automatic interpretation
6. 800x480 graphic 7 inch color LCD to simultaneously display ECG information
7. Alphanumeric keyboard to operate, very convenient to use
8. 250 patient cases storage ( SD card storage is optional )
9. Detailed patient information record, available for roll and Z-fold thermal paper
10. Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Li-ion battery
11. USB / Rs232 communication port support USB storage, laser printer printing and PC ECG software ( Optional )

Techinical Specifications:

Standard 12 leads
Lead acquisition
12bit/1000Hz (synchronously 12 leads)
Work mode
Manual / Auto / R-R Analysis
AC Filter : 50Hz / 60Hz
EMG Filter : 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz ( Adaptive )
≥120dB ( with AC Filter )
Input circuit
Floating ; Protection circuit against
Defibrillator effect
Input impedance
Input circuit current
Patient current leakage
Calibrating voltage
1mV± 2%
Voltage tolerance
Time constant
Frequency response
0.05- 160Hz ( -3db )
Noise level
<15 uVp-p
Inter-channel interference
Auto, 2.5, 5, 10, 20, 40mm/mV ( ±3%)
Recording mode
3ch+++, 6ch, 6ch+, 12ch
Default Man.Mode is 3ch+++ format
Default Auto.Mode is 12ch format
Paper speed
6.25, 12.5, 25, 50mm/s ( ±3%)
215mm x 20m roll paper or 210mmx140mm Z-fold paper
Working environment
Temperature 5-40 C; Humidity 25-95%
Power supply
AC 110-230V ( 10%), 50/60Hz ( 1Hz ), 40VA
DC rechargeable Li-ion battery,2000mAh or 4400mAh
Dimension / Weight
347mm x 293mm x 83mm, 4.8kgs
Our Company

UTECH CO.,LTD is a professional high-tech company combining R&D, manufacture and distribution of medical equipments. Our products are include Patient Monitors, Pulse Oximeters, Veterinary Products, Infusion & Syringe pumps, Therapy devices.

Enterprise vision: To be the premier life safety solution provider in worldwide.
Enterprise mission: Proceeding from the needs of all customers.

We do this by:
1. Creating reliable measurements that read true in all patients, even the sickest patients
2. Making affordable, economic and durable devices
3. Enabling easy data capture, management, reporting and remotely software updated
4. Expanding more products to satisfy different needs.

We already served more than180 countries and will pay more attention on serving worldwide with high quality and competitive prices medical equipments. UTECH is becoming a leading medical equipment supplier which maintains sustainable growth worldwide.

Packing & Delivery




1. Q: What are your payment terms?
A: T/T, Western Union, Paypal, L/C, Money Gram etc.

2. Q: What's your delivery time?
A: 3 business days upon the receipt of payment.

3. Q: What are your shipping ways?
A: DHL, UPS, TNT, Fedex, EMS etc, or By air , By sea.
